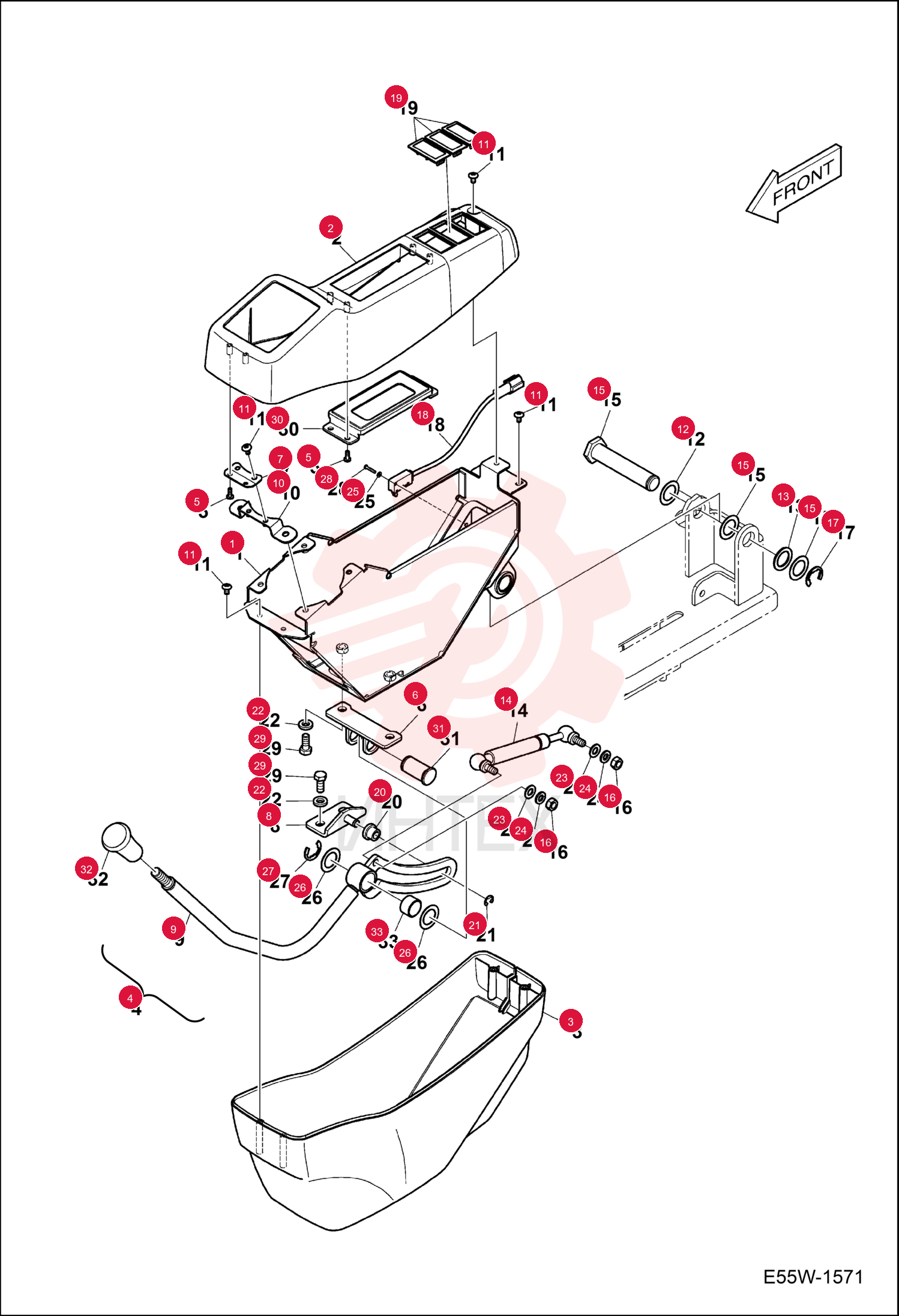

BRACKET 7283522

BRACKET 7283522

BRACKET 7283522

1 7283522

  • 7283522 - BRACKET

2 7002772

  • 7002772 - FRAME
  • SPRAYER PTO

3 7005773

  • 7005773 - HOUSING LOWER

4 7283523

  • 7283523 - LEVER
  • Ref. 6
  • 9
  • 26
  • 27 & 31-33

5 7007789

  • 7007789 - BOLT

6 7283524

  • 7283524 - PLATE

7 7005893

  • 7005893 - PLATE

8 7283525

  • 7283525 - PLATE

9 7283526

  • 7283526 - LEVER

10 7005894

  • 7005894 - PLATE

11 7004548

  • 7004548 - BOLT

12 7005659

  • 7005659 - SHIM

13 7004523

  • 7004523 - WASHER

14 7283527

  • 7283527 - GAS SPRING

15 7283528

  • 7283528 - PIN

16 7004562

  • 7004562 - NUT

17 7007891

  • 7007891 - RING RETAINING

18 7008282

  • 7008282 - SWITCH
  • PILOT CUTOFF

19 7028973

  • 7028973 - COVER
  • SWITCH

20 7005661

  • 7005661 - ROLLER

21 7005563

  • 7005563 - TEE

22 7004515

  • 7004515 - WASHER

23 7004511

  • 7004511 - WASHER

24 7004521

  • 7004521 - WASHER
  • SPRING

25 7008300

  • 7008300 - WASHER
  • PLAIN

26 7008298

  • 7008298 - SCREW
  • M3X16

27 7007891

  • 7007891 - RING RETAINING

28 7008298

  • 7008298 - SCREW
  • M3X16

29 7004546

  • 7004546 - BOLT

30 7005947

  • 7005947 - COVER STAND RH

31 7006324

  • 7006324 - PIN

32 7005674

  • 7005674 - HANDLE GRIP

33 7004459

  • 7004459 - BUSHING
