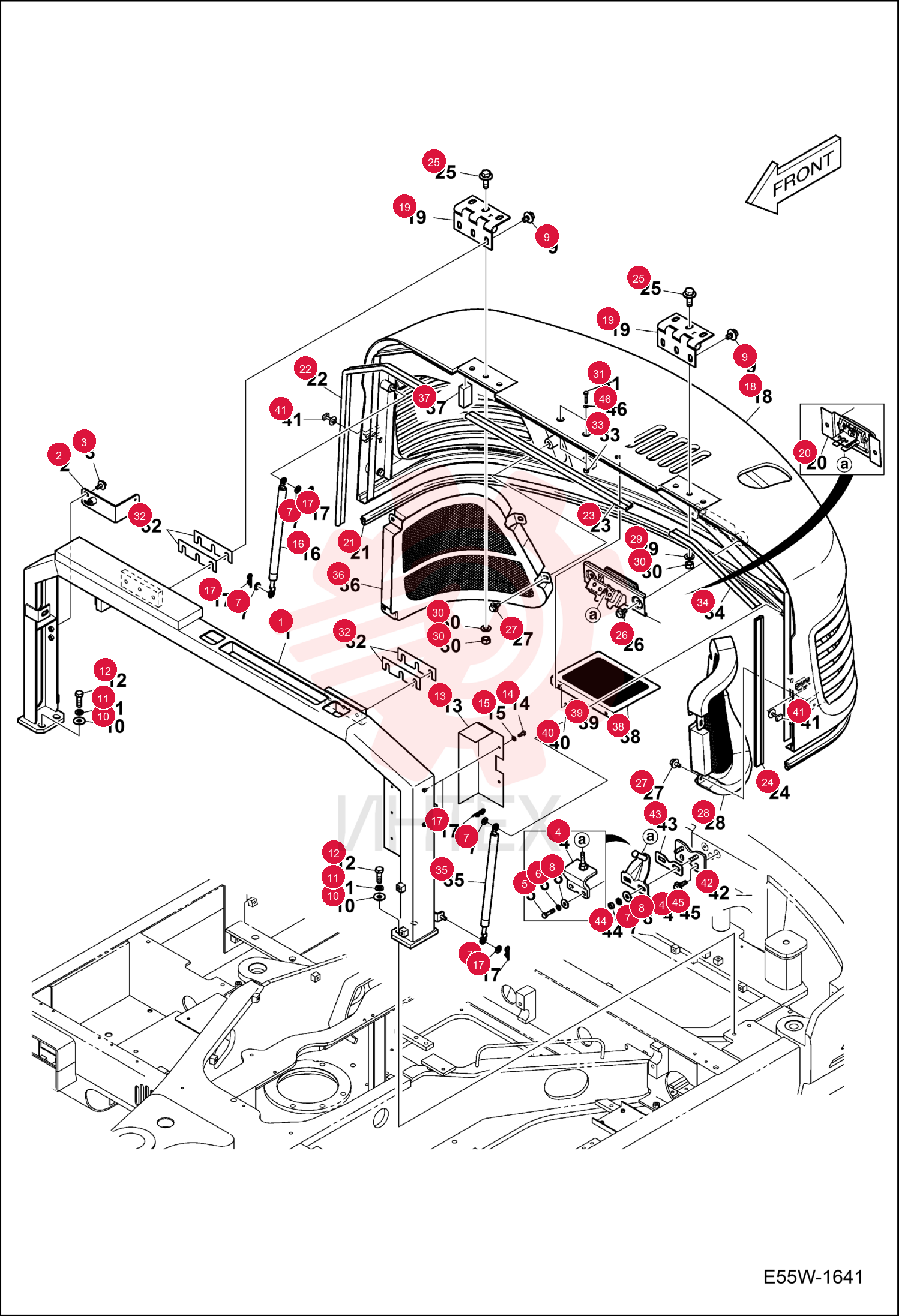

SUPPORT 7283542

SUPPORT 7283542

SUPPORT 7283542

1 7283542

  • 7283542 - SUPPORT

2 7300082

  • 7300082 - SUPPORT

3 7005877

  • 7005877 - PLATE

4 7012229

  • 7012229 - BOLT FLANGE

5 7005950

  • 7005950 - STRIKER

6 7028839

  • 7028839 - STRIKER

7 7007622

  • 7007622 - BOLT

8 7276756

  • 7276756 - WASHER
  • Was 7007834

9 7007816

  • 7007816 - WASHER

10 7004470

  • 7004470 - WASHER PLAIN

11 7005123

  • 7005123 - BOLT SET

12 7004477

  • 7004477 - WASHER PLAIN

13 7007813

  • 7007813 - WASHER

14 7007836

  • 7007836 - WASHER SPRING M12

15 7007642

  • 7007642 - BOLT

16 7006498

  • 7006498 - COVER

17 7300083

  • 7300083 - COVER

18 7007606

  • 7007606 - BOLT

19 7007814

  • 7007814 - WASHER

20 7006441

  • 7006441 - CYLINDER GAS

21 7004569

  • 7004569 - PIN

22 7024771

  • 7024771 - HOOD ASSEMBLY
  • W/Ref. 19-31

23 7283543

  • 7283543 - REAR DOOR
  • W/Ref. 19-31

24 7005858

  • 7005858 - HINGE

25 7005859

  • 7005859 - CATCH

26 7028878

  • 7028878 - CATCH
  • ASSY

27 7006587

  • 7006587 - EDGE RUBBER

28 7006588

  • 7006588 - EDGE RUBBER

29 7006589

  • 7006589 - EDGE RUBBER

30 7006590

  • 7006590 - EDGE RUBBER

31 7005134

  • 7005134 - BOLT SET

32 7005136

  • 7005136 - BOLT SET

33 7005129

  • 7005129 - BOLT SET

34 7283545

  • 7283545 - COVER
  • BAFFLE

35 7007813

  • 7007813 - WASHER

36 7007799

  • 7007799 - NUT

37 7012263

  • 7012263 - BOLT
  • SET

38 7287336

  • 7287336 - BOLT

39 7006654

  • 7006654 - SHIM

40 7012264

  • 7012264 - NUT LOCK

41 7006663

  • 7006663 - PAD

42 7015609

  • 7015609 - CYLINDER
  • GAS

43 7283544

  • 7283544 - COVER
  • BAFFLE

44 7283546

  • 7283546 - SEAL
  • FOAM

45 7024773

  • 7024773 - BRACKET

46 7007606

  • 7007606 - BOLT

47 7007811

  • 7007811 - WASHER PLAIN

48 7024774

  • 7024774 - WASHER

49 7283547

  • 7283547 - BRACKET

50 7029400

  • 7029400 - SPACER

51 7007797

  • 7007797 - NUT

52 7283548

  • 7283548 - BOLT

53 7007814

  • 7007814 - WASHER
