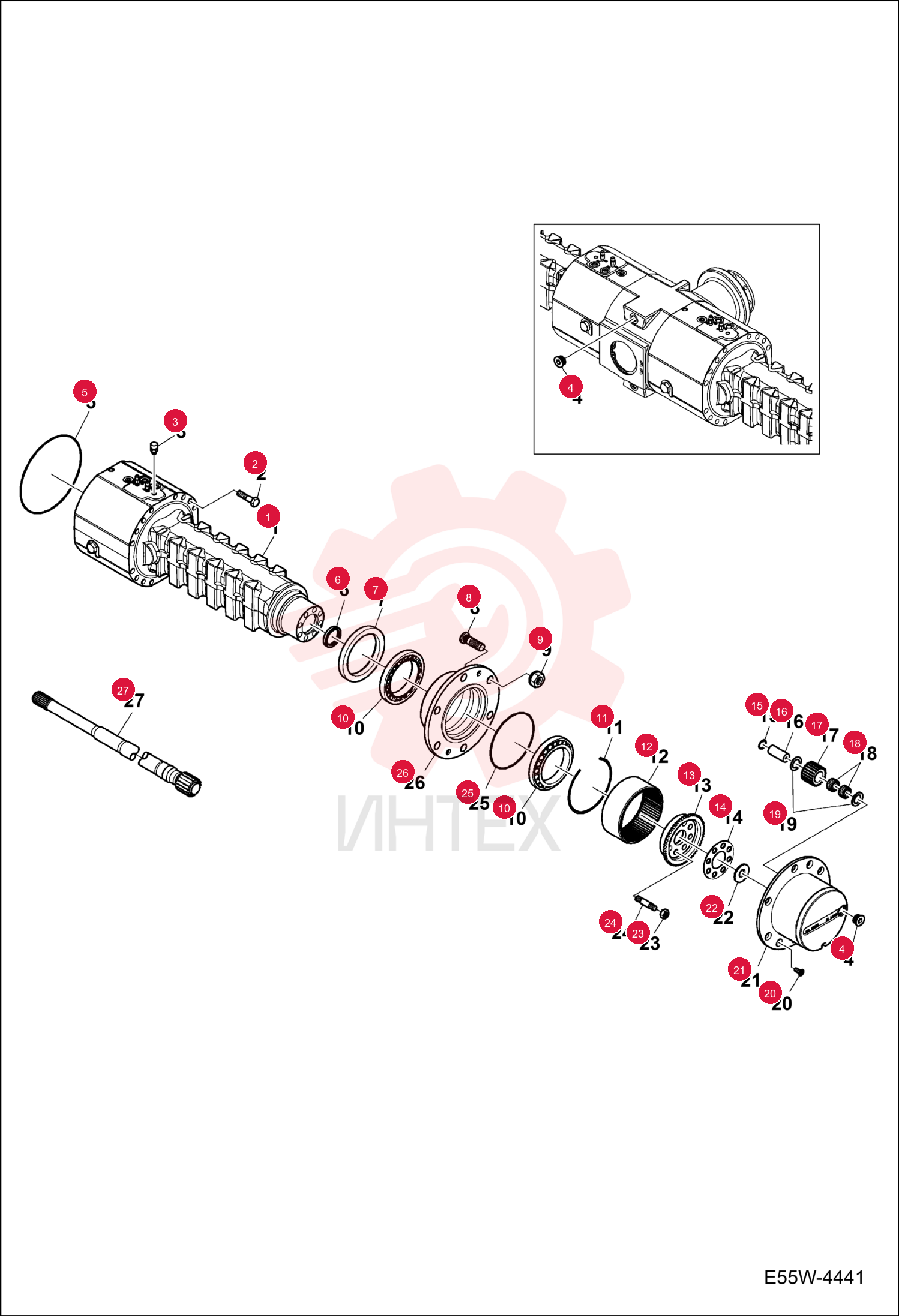

CASE, REAR 7283419

CASE, REAR 7283419

CASE, REAR 7283419

1 7283419

  • 7283419 - CASE
  • REAR

2 6921026

  • 6921026 - HEXAGON BOLT

3 7282988

  • 7282988 - VENT
  • BREATHER

4 6912627

  • 6912627 - PLUG
  • Was 7282987

5 7283039

  • 7283039 - BOLT

6 7283420

  • 7283420 - RING

7 7004258

  • 7004258 - SEAL

8 7007315

  • 7007315 - STUD WHEEL

9 7283057

  • 7283057 - STUD
  • WHEEL

10 7004157

  • 7004157 - NUT

11 7003991

  • 7003991 - BEARING

12 7281931

  • 7281931 - CIRCLIP

13 7281921

  • 7281921 - GEAR
  • RING

14 7281922

  • 7281922 - GEAR
  • RING

15 7283058

  • 7283058 - PLATE
  • LOCK

16 7281923

  • 7281923 - CIRCLIP

17 7281924

  • 7281924 - PIN

18 7281926

  • 7281926 - GEAR
  • PLANETARY

19 7281927

  • 7281927 - BEARING
  • NEEDLE

20 7281975

  • 7281975 - DECAL
  • CAPACITY LIFT

21 7007306

  • 7007306 - BOLT CYLINDER

22 7283060

  • 7283060 - CARRIER
  • DIFF

23 6912737

  • 6912737 - WASHER
  • Was 7283061

24 7283062

  • 7283062 - NUT

25 7283063

  • 7283063 - BOLT

26 7004248

  • 7004248 - RING

27 7283421

  • 7283421 - HUB
  • WHEEL

28 7283422

  • 7283422 - SHAFT
