Bobcat
/
E55W
/

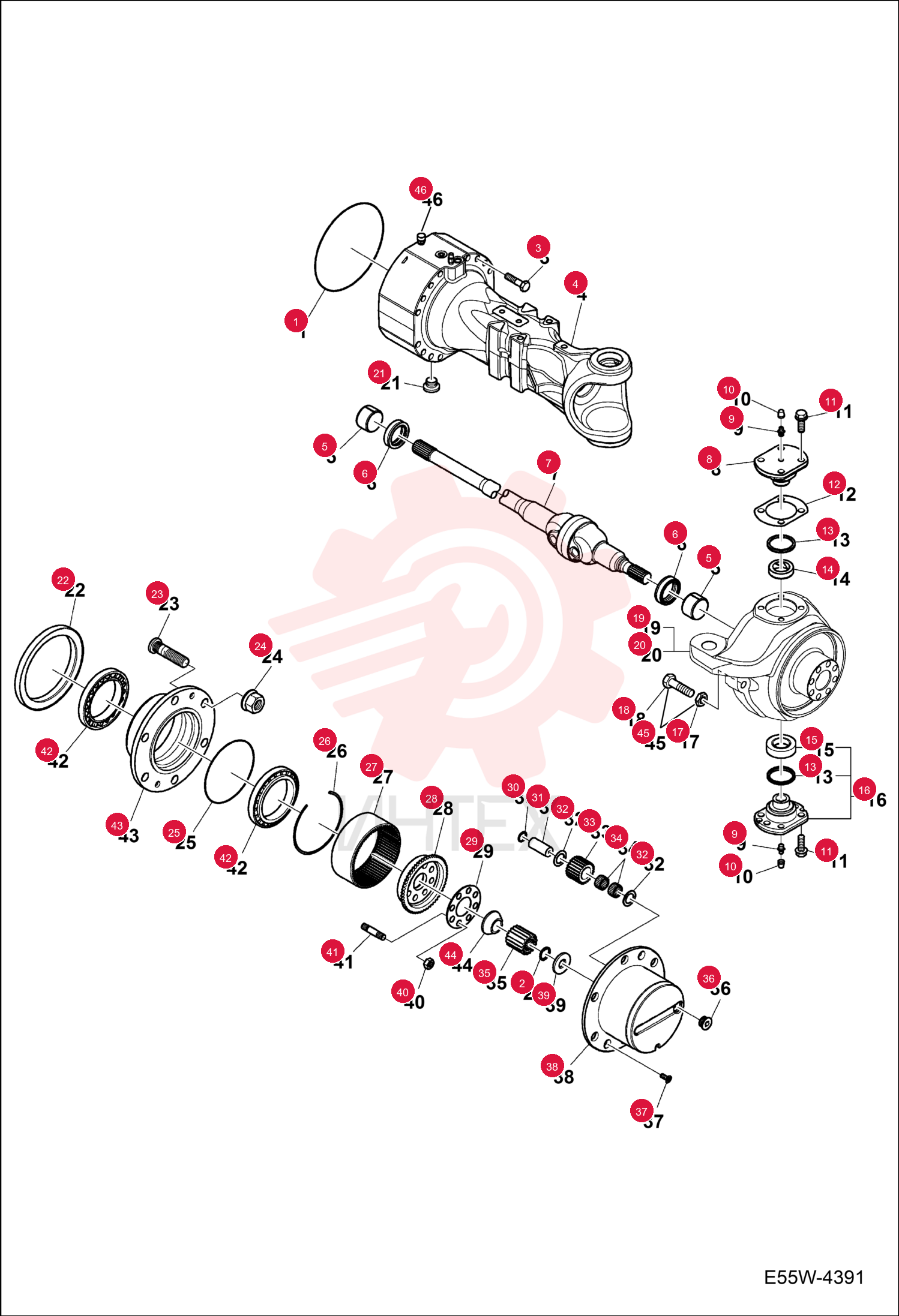

O-RING 7282990 (1)

O-RING 7282990 (1)

O-RING 7282990 (1)

1 7282990

  • 7282990 - O-RING

2 7281930

  • 7281930 - CLIP

3 7283039

  • 7283039 - BOLT

4 7283040

  • 7283040 - HOUSING
  • AXLE

5 7283041

  • 7283041 - BUSHING AXLE
  • Was 6912679

6 7269865

  • 7269865 - SEAL AXLE
  • Was 6912708

7 7283042

  • 7283042 - JOINT
  • DOUBLE UNIVERSAL

8 7283043

  • 7283043 - PIN
  • PIVOT

9 6912700

  • 6912700 - LUBRICATOR
  • Was 7004279

10 7004282

  • 7004282 - PLUG

11 7283044

  • 7283044 - BOLT HEX
  • Was 6912771

12 7283047

  • 7283047 - SHIM
  • 0.20

13 7283046

  • 7283046 - SHIM
  • 0.15

14 7283045

  • 7283045 - SHIM
  • 0.50

15 7283048

  • 7283048 - SEAL O-RING

16 7283049

  • 7283049 - BUSHING

17 7283050

  • 7283050 - BUSHING

18 7283051

  • 7283051 - PIN
  • PIVOT

19 7283052

  • 7283052 - NUT

20 7283053

  • 7283053 - BOLT

21 7283054

  • 7283054 - CASE
  • STRG

22 7283055

  • 7283055 - CASE
  • STRG

23 6921018

  • 6921018 - MAGNET PLUG
  • Was 7282986

24 7283056

  • 7283056 - SEAL HUB
  • Was - 6912706

25 7007315

  • 7007315 - STUD WHEEL

26 7283057

  • 7283057 - STUD
  • WHEEL

27 7004157

  • 7004157 - NUT

28 7004248

  • 7004248 - RING

29 7281931

  • 7281931 - CIRCLIP

30 7281921

  • 7281921 - GEAR
  • RING

31 7281922

  • 7281922 - GEAR
  • RING

32 7283058

  • 7283058 - PLATE
  • LOCK

33 7281923

  • 7281923 - CIRCLIP

34 7281924

  • 7281924 - PIN

35 7281925

  • 7281925 - WASHER

36 7281926

  • 7281926 - GEAR
  • PLANETARY

37 7281927

  • 7281927 - BEARING
  • NEEDLE

38 7281929

  • 7281929 - GEAR
  • SUN

39 7283059

  • 7283059 - PLUG

40 7007306

  • 7007306 - BOLT CYLINDER

41 7283060

  • 7283060 - CARRIER
  • DIFF

42 6912737

  • 6912737 - WASHER
  • Was 7283061

43 7283062

  • 7283062 - NUT

44 7283063

  • 7283063 - BOLT

45 7003991

  • 7003991 - BEARING

46 7283064

  • 7283064 - HUB
  • WHEEL

47 7281928

  • 7281928 - SPACER

48 6912774

  • 6912774 - SCREW

49 7268089

  • 7268089 - PLUG
