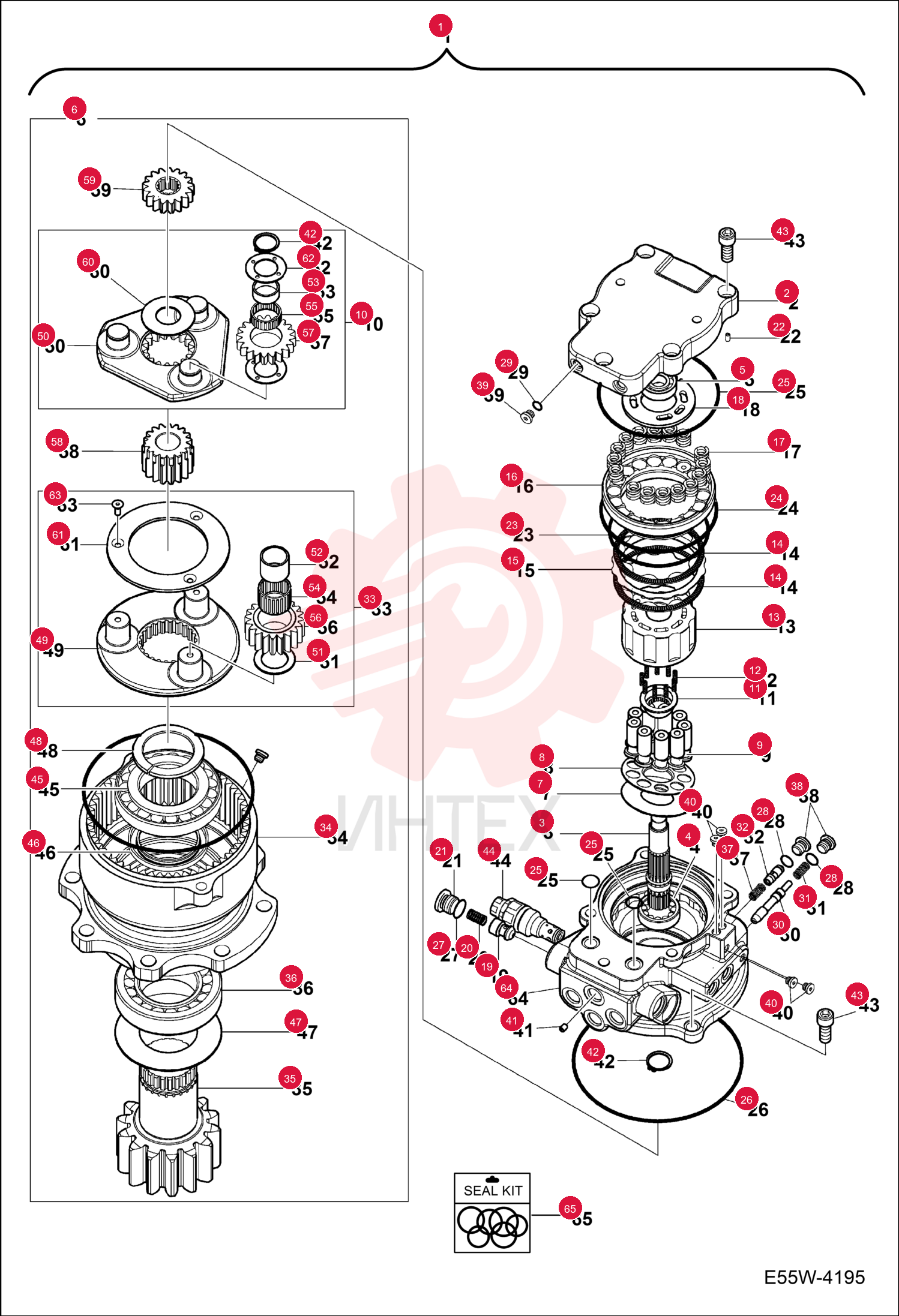

MOTOR, SWING 7283451 (2)

MOTOR, SWING 7283451 (2)

MOTOR, SWING 7283451 (2)

1 7283451

  • 7283451 - MOTOR
  • SWING

2 7029710

  • 7029710 - COVER
  • VALVE

3 7007223

  • 7007223 - SHAFT DRIVE

4 7007234

  • 7007234 - BEARING ROLLER

5 7003701

  • 7003701 - BEARING BALL

6 7029768

  • 7029768 - KIT
  • GEAR AND SHAFT

7 7007237

  • 7007237 - PLATE SHOE

8 7029932

  • 7029932 - PLATE

9 7007238

  • 7007238 - PLATE RETAINER

10 7029920

  • 7029920 - PISTON
  • ASSY
  • Was 7007236

11 7029706

  • 7029706 - KIT
  • GEAR SET

12 7029693

  • 7029693 - BUSHING
  • Was 7007239

13 7007201

  • 7007201 - SPRING CYLINDER

14 7029665

  • 7029665 - BLOCK
  • CYL

15 7007215

  • 7007215 - PLATE FRICTION

16 7007216

  • 7007216 - PLATE SEPARATION

17 7029922

  • 7029922 - PISTON
  • BRAKE
  • Was 7007224

18 7007225

  • 7007225 - SPRING BRAKE

19 7029935

  • 7029935 - PLATE
  • VALVE
  • Was 7007217

20 7007218

  • 7007218 - ROLLER PLUNGER

21 7007219

  • 7007219 - SPRING CHECK

22 7007199

  • 7007199 - PLUG

23 7007858

  • 7007858 - PIN SPRING

24 7004655

  • 7004655 - O-RING

25 7004656

  • 7004656 - O-RING

26 7004657

  • 7004657 - O-RING

27 7004661

  • 7004661 - O-RING

28 7007910

  • 7007910 - O-RING

29 7283267

  • 7283267 - O-RING
  • Was 7007906

30 7007903

  • 7007903 - O-RING

31 7007226

  • 7007226 - SPOOL

32 7007229

  • 7007229 - SPRING

33 7007596

  • 7007596 - DIAPHRAGM PLUNGER ASSY

34 7029707

  • 7029707 - KIT
  • GEAR SET

35 7283461

  • 7283461 - CASE
  • GEAR

36 7029709

  • 7029709 - HOUSING
  • MOTOR

37 7029987

  • 7029987 - GEAR
  • SHAFT

38 7007451

  • 7007451 - BEARING TAPER ROLLER

39 7007240

  • 7007240 - SPRING

40 7004727

  • 7004727 - PLUG

41 7004729

  • 7004729 - PLUG RO

42 7004729

  • 7004729 - PLUG RO

43 7007200

  • 7007200 - ORIFICE

44 7007873

  • 7007873 - RING SNAP

45 7007760

  • 7007760 - BOLT SOCKET

46 7283460

  • 7283460 - VALVE
  • RELIEF
  • Was 7030034

47 7007452

  • 7007452 - BEARING TAPER ROLLER

48 7007231

  • 7007231 - SEAL OIL

49 7007202

  • 7007202 - COVER BEARING

50 7007203

  • 7007203 - COLLAR HALF

51 7007205

  • 7007205 - CARRIER NO.2

52 7283462

  • 7283462 - CARRIER

53 7007204

  • 7007204 - CARRIER NO.1

54 7283463

  • 7283463 - CARRIER

55 7007220

  • 7007220 - WASHER NO.3 THRUST

56 7029952

  • 7029952 - RING
  • INNER

57 7024794

  • 7024794 - RING
  • INNER

58 7007232

  • 7007232 - BEARING NEEDLE

59 7007233

  • 7007233 - BEARING NEEDLE

60 7007209

  • 7007209 - GEAR NO.2 PLANET

61 7007208

  • 7007208 - GEAR NO.1 PLANET

62 7007211

  • 7007211 - GEAR NO.2 SUN

63 7007210

  • 7007210 - GEAR NO.1 SUN

64 7007212

  • 7007212 - WASHER NO.1 THRUST

65 7007213

  • 7007213 - PLATE THRUST

66 7007325

  • 7007325 - WASHER THRUST

67 7007326

  • 7007326 - BOLT

68 7283458

  • 7283458 - HOUSING
  • MOTOR

69 7283459

  • 7283459 - HOUSING
  • MOTOR

70 7283464

  • 7283464 - KIT
  • SEAL
