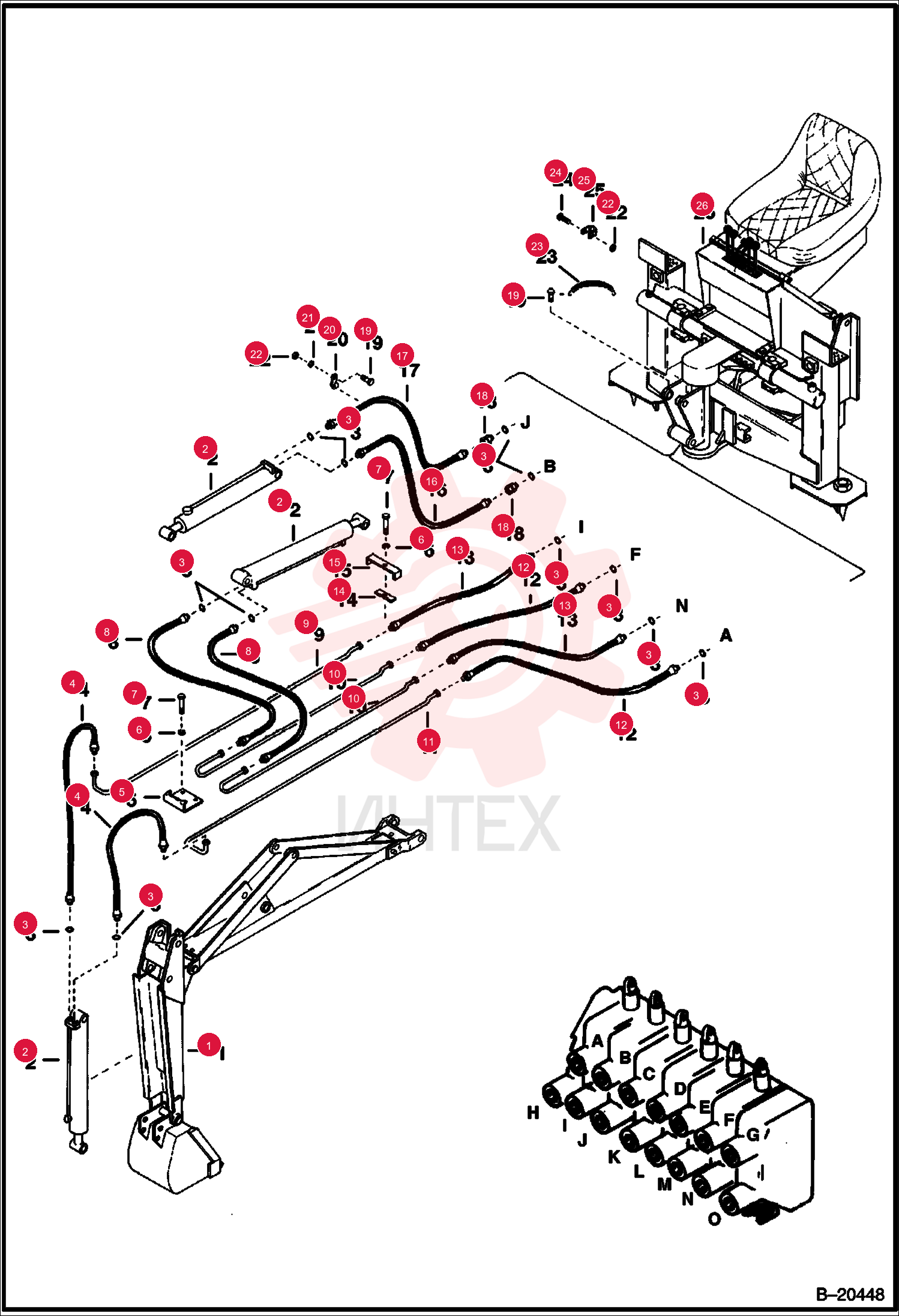

O RING 10 79K8 (8)

O RING 10 79K8 (8)

O RING 10 79K8 (8)

1 79K8

  • 79K8 - O RING 10
  • Was 91F000006B

2 6515450

  • 6515450 - ASSY
  • HOSE

3 6518022

  • 6518022 - CLAMP

4 4E5

  • 4E5 - WASHER

5 17C532

  • 17C532 - BOLT 5

6 6515451

  • 6515451 - ASSY
  • HOSE

7 6518024

  • 6518024 - TUBE

8 6518021

  • 6518021 - TUBE

9 6518023

  • 6518023 - TUBE

10 6515448

  • 6515448 - ASSY
  • HOSE

11 6518018

  • 6518018 - HOSE

12 6518025

  • 6518025 - CLAMP PLT

13 6518026

  • 6518026 - CLAMP

14 6515447

  • 6515447 - ASSY
  • HOSE

15 6515446

  • 6515446 - ASSY
  • HOSE

16 6518028

  • 6518028 - ADAPTER
  • W/Ref. 3

17 17C412

  • 17C412 - BOLT 5

18 6518027

  • 6518027 - CLAMP

19 4E4

  • 4E4 - WASHER

20 61D4

  • 61D4 - NUT 5

21 6518019

  • 6518019 - SPRING
  • hose retainer

22 6518020

  • 6518020 - CLAMP
