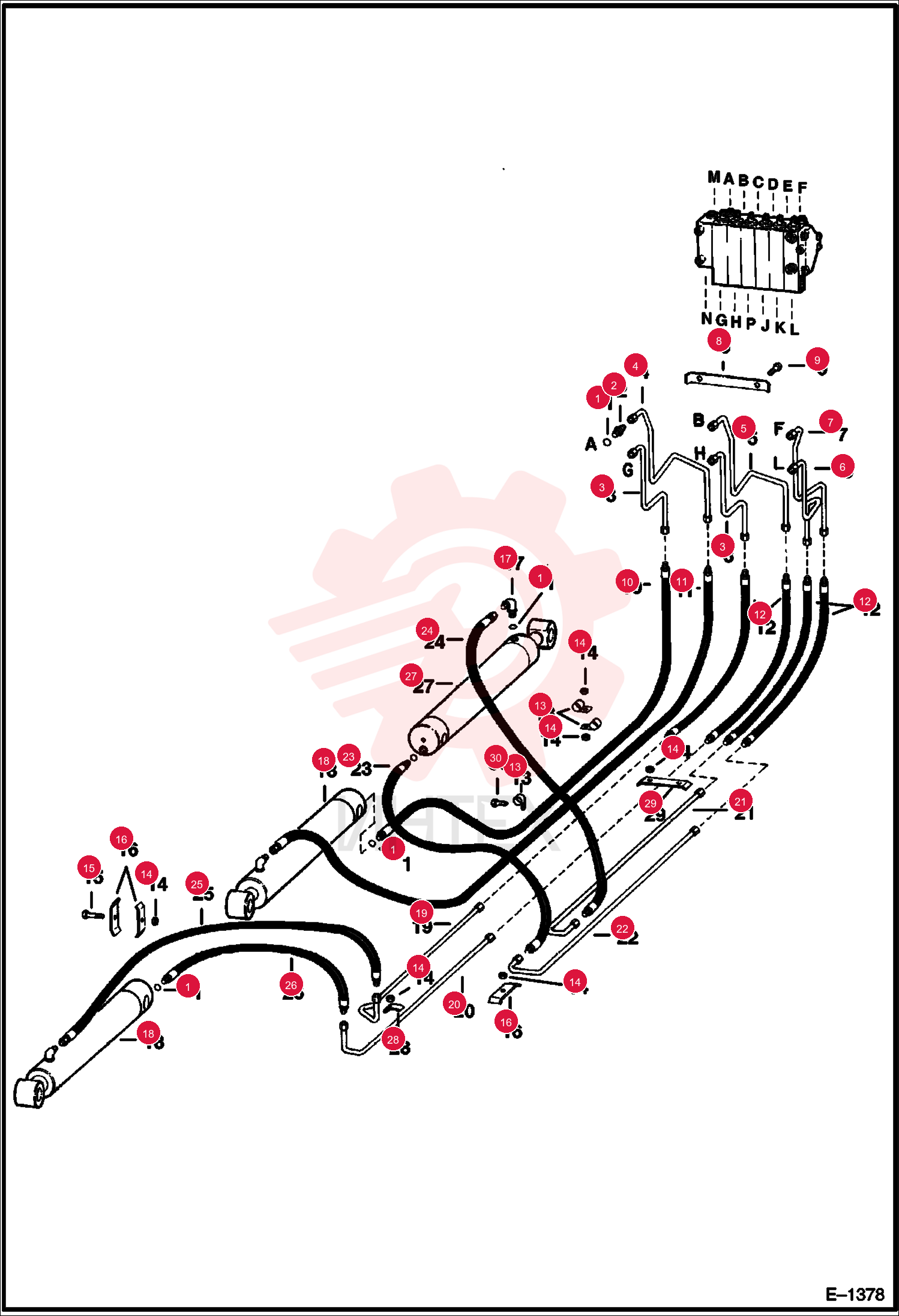

O RING 10 79K8 (9)

O RING 10 79K8 (9)

O RING 10 79K8 (9)

1 79K8

  • 79K8 - O RING 10

2 15K6

  • 15K6 - ADAPTER
  • W/Ref. 1

3 6561253

  • 6561253 - TUBE

4 6561258

  • 6561258 - TUBE

5 6561256

  • 6561256 - TUBE

6 6561255

  • 6561255 - TUBE

7 6560554

  • 6560554 - CLAMP

8 84G3724

  • 84G3724 - SCREW THD ROLLING TT

9 6563261

  • 6563261 - HOSE

10 6563262

  • 6563262 - HOSE

11 6563260

  • 6563260 - HOSE

12 30H46

  • 30H46 - CLIP

13 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

14 17C628

  • 17C628 - BOLT

15 6502426

  • 6502426 - CLAMP

16 17K6

  • 17K6 - ELBOW
  • W/Ref. 1

17 6591927

  • 6591927 - CYLINDER

18 6562009

  • 6562009 - TUBE

19 6561915

  • 6561915 - TUBELINE

20 6561914

  • 6561914 - TUBE

21 6561913

  • 6561913 - TUBE

22 6591938

  • 6591938 - HOSE

23 713246

  • 713246 - HYD HOSE

24 6563443

  • 6563443 - HOSE

25 6563444

  • 6563444 - HOSE

26 6592180

  • 6592180 - CYLINDER

27 6562266

  • 6562266 - CLAMP TUBE

28 6562267

  • 6562267 - CLAMP

29 84G3110

  • 84G3110 - SCREW
