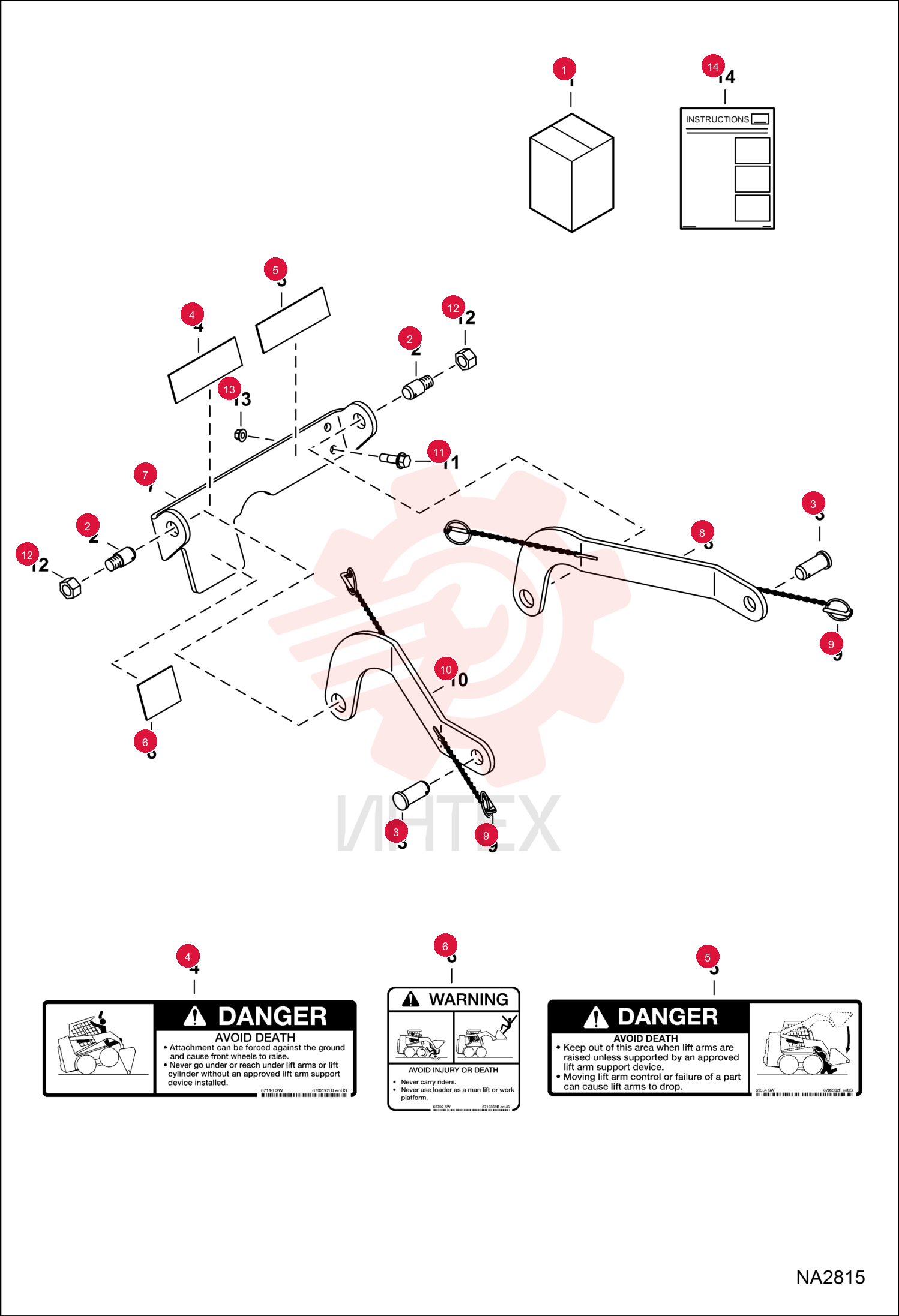

KIT BACKHOE MTG S100

KIT BACKHOE MTG S100

KIT BACKHOE MTG S100

1 7141973

  • 7141973 - KIT BACKHOE MTG S100
  • Ref. 2-14 - Was SALES

2 6557887

  • 6557887 - PIN
  • threaded

3 6557920

  • 6557920 - PIN

4 6702301

  • 6702301 - DECAL
  • DANGER

5 6702302

  • 6702302 - DECAL
  • DANGER

6 6710358

  • 6710358 - DECAL
  • WARNING

7 7141883

  • 7141883 - BRACKET
  • MOUNTING

8 7141969

  • 7141969 - BAR
  • LOCKOUT
  • LH

9 6649496

  • 6649496 - CLICK PIN
  • W/chain

10 7141971

  • 7141971 - BAR
  • LOCKOUT
  • RH

11 31C824

  • 31C824 - BOLT 10

12 61D16

  • 61D16 - LCKNUT

13 83D8

  • 83D8 - LKNUT HEX FLG GR8

14 6986575

  • 6986575 - INSTRUCTIONS
