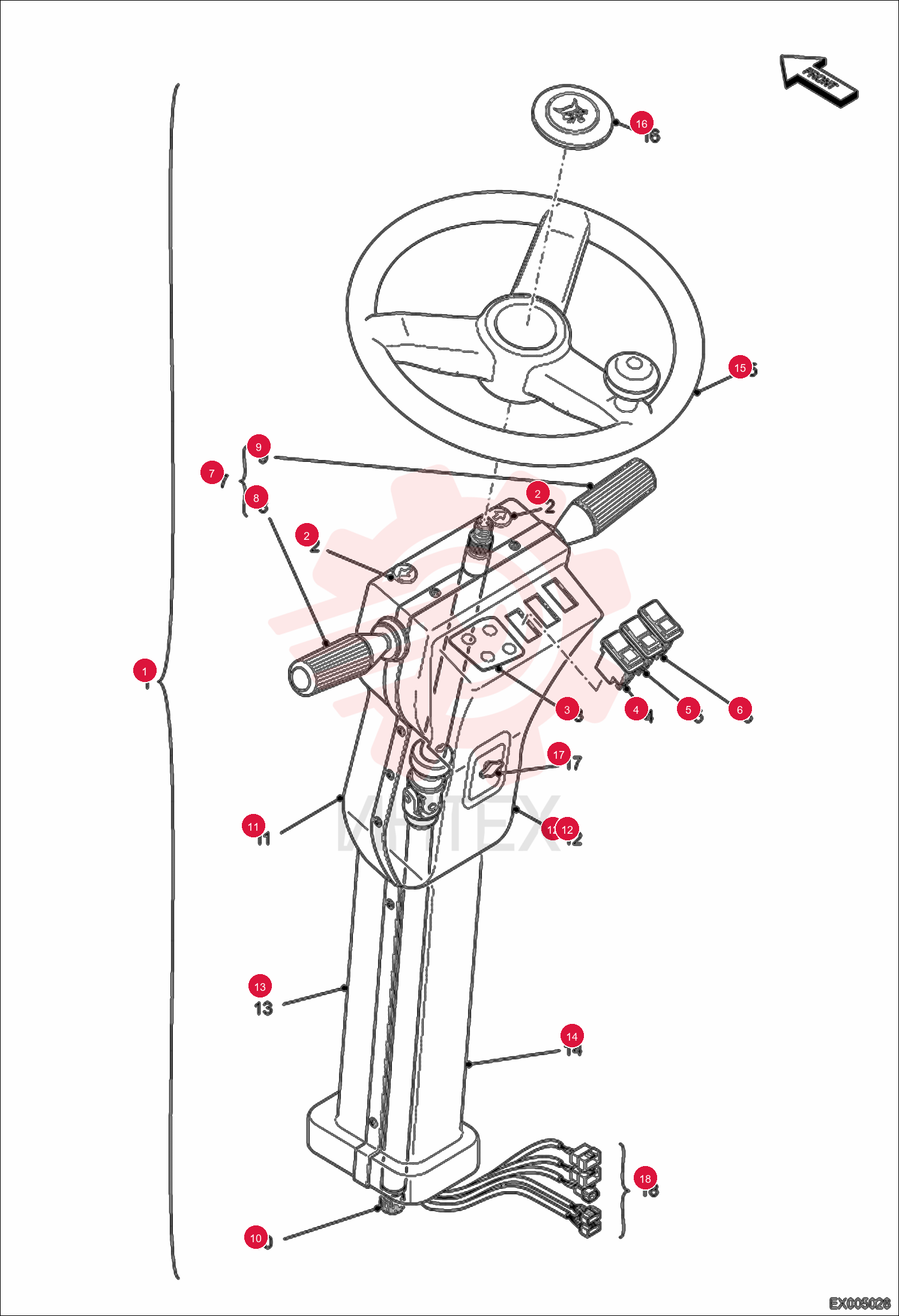

COLUMN ASSY, STEERING 7301880 (2)

COLUMN ASSY, STEERING 7301880 (2)

COLUMN ASSY, STEERING 7301880 (2)

1 7301880

  • 7301880 - COLUMN ASSY
  • STEERING
  • W/Ref. 2-18

2 7015613

  • 7015613 - COLUMN ASSY
  • STEERING
  • W/Ref. 2-18

3 7007293

  • 7007293 - PANEL

4 7018651

  • 7018651 - PANEL
  • LCD

5 7007300

  • 7007300 - SWITCH ROCKER

6 7007302

  • 7007302 - SWITCH ROCKER

7 7007301

  • 7007301 - SWITCH ROCKER

8 7005732

  • 7005732 - SWITCH ASSY COLUMN
  • W/Ref. 8-9

9 7005739

  • 7005739 - SWITCH COMBINATION LH

10 7005738

  • 7005738 - SWITCH FNR RH

11 7007304

  • 7007304 - COLUMN STEERING

12 7007297

  • 7007297 - COVER UPPER FRONT

13 7007298

  • 7007298 - COVER UPPER REAR

14 7007295

  • 7007295 - COVER LOWER FRONT

15 7007296

  • 7007296 - COVER LOWER REAR

16 7005635

  • 7005635 - WHEEL STEERING

17 7005636

  • 7005636 - CAP

18 7007299

  • 7007299 - HANDLE KNOB

19 7007303

  • 7007303 - HARNESS
