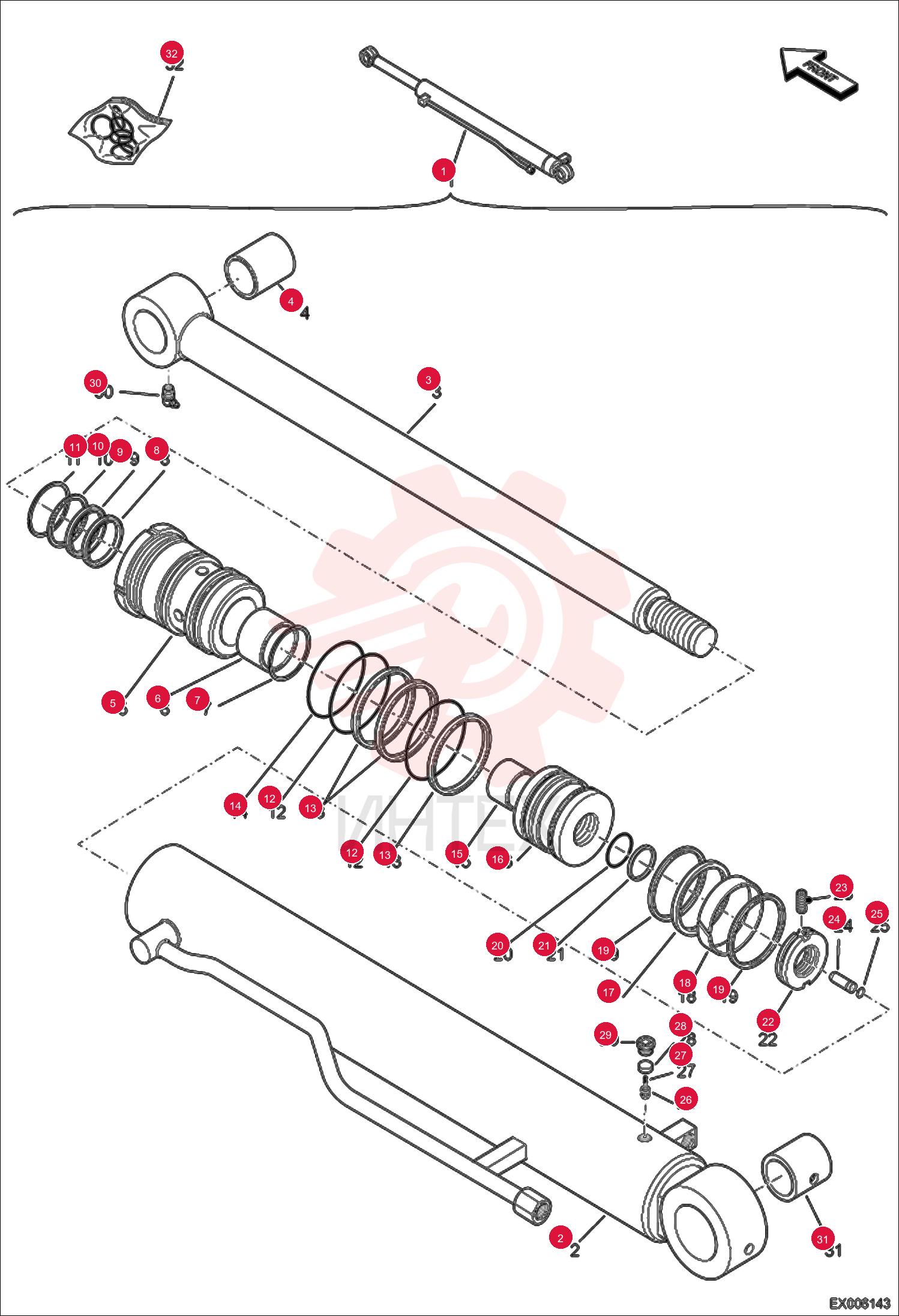

CYLINDER ARM 7310476
1 7310476
- 7310476 - CYLINDER ARM
- W/Ref. 2-31
2 7007272
- 7007272 - TUBELINE ASSY
3 7007273
- 7007273 - ROD ASSEMBLY
4 7028765
- 7028765 - BUSHING
- Was 7005752
5 7310588
- 7310588 - COVER ROD
6 7007274
- 7007274 - COVER ROD
7 7003710
- 7003710 - BUSHING DD
8 7007023
- 7007023 - RING RETAINING
9 7007025
- 7007025 - SEAL BUFFER
10 7003759
- 7003759 - SEAL
11 7296234
- 7296234 - O-RING
12 7003792
- 7003792 - WIPER DUST
13 7003724
- 7003724 - RING RETAINING
14 7007939
- 7007939 - ORING
15 7003773
- 7003773 - RING BACK-UP
16 7007941
- 7007941 - O-RING
17 7003726
- 7003726 - RING CUSHION
18 7003817
- 7003817 - PISTON
19 7310589
- 7310589 - PISTON VALVE
20 7007024
- 7007024 - RING GLYD
21 7296286
- 7296286 - SEAL
22 7003784
- 7003784 - RING WEAR
23 7007022
- 7007022 - RING DUST
24 7007934
- 7007934 - O-RING
25 7007969
- 7007969 - RING BACK-UP
26 7310590
- 7310590 - RING BACK UP
27 7280480
- 7280480 - NUT
28 7007792
- 7007792 - SCREW SET
29 7003834
- 7003834 - DIAPHRAGM PLUNGER CUSHION
30 7003729
- 7003729 - RING STOP
31 7003833
- 7003833 - VALVE CHECK
32 7003742
- 7003742 - SPRING
33 7003804
- 7003804 - SUPPORT SPRING
34 7004674
- 7004674 - PLUG PT3/8
35 7010248
- 7010248 - FITTING
- GREASE
- Was 7007900
36 7028765
- 7028765 - BUSHING
- Was 7005752
37 7024159
- 7024159 - KIT
- SEAL
- Ref. 8-10
- 12-14 & 17-21 - Was 7007026
