HARNESS ENG 7312863 (1)

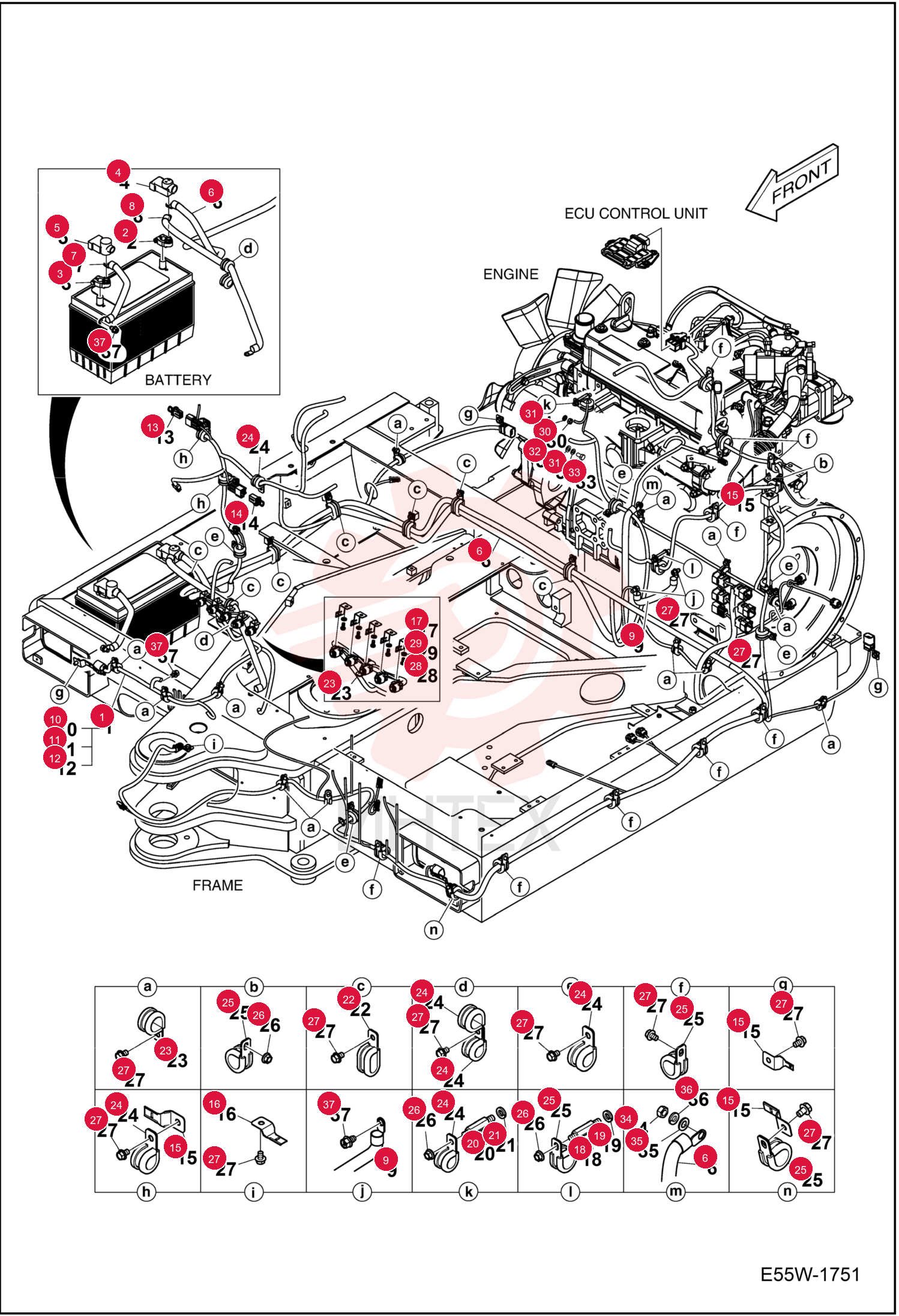

HARNESS ENG 7312863 (1)

HARNESS ENG 7312863 (1)

1 7312863

  • 7312863 - HARNESS ENG
  • W/Ref. 10-12

2 7004917

  • 7004917 - TERMINAL BATTERY +

3 7008150

  • 7008150 - TERMINAL
  • BATTERY(-)

4 7275651

  • 7275651 - BOOT
  • RUBBER

5 7004616

  • 7004616 - CAP BATT TML -

6 7029702

  • 7029702 - CABLE
  • NEGATIVE

7 7352410

  • 7352410 - CABLE EARTH

8 7352411

  • 7352411 - ASSY CABLE BATTERY

9 7005036

  • 7005036 - CABLE E/G EARTH

10 7004913

  • 7004913 - RESITOR DIODE

11 7005030

  • 7005030 - RESISTOR DIODE ASSY 3A

12 7005627

  • 7005627 - RESITOR DIODE

13 7004896

  • 7004896 - LINK FUSIBLE

14 7005009

  • 7005009 - LINK FUSIBLE

15 7004825

  • 7004825 - BRACKET HOUSING

16 7004826

  • 7004826 - BRACKET HOUSING

17 7004824

  • 7004824 - BRACKET HOUSING

18 7003871

  • 7003871 - BOLT STUD

19 7007835

  • 7007835 - WASHER SPRING

20 7003870

  • 7003870 - BOLT STUD

21 7007834

  • 7007834 - WASHER SPRING

22 7003902

  • 7003902 - CLIP

23 7003894

  • 7003894 - CLIP

24 7003895

  • 7003895 - CLIP

25 7003896

  • 7003896 - CLIP

26 7004561

  • 7004561 - NUT

27 7005629

  • 7005629 - BOLT

28 7007785

  • 7007785 - SCREW M6X1.0X12

29 7007833

  • 7007833 - WASHER
  • SPRING

30 7007794

  • 7007794 - NUT

31 7007827

  • 7007827 - WASHER SPRING

32 7007810

  • 7007810 - WASHER

33 7007600

  • 7007600 - BOLT

34 7007796

  • 7007796 - NUT

35 7007816

  • 7007816 - WASHER

36 7007834

  • 7007834 - WASHER SPRING

37 7275652

  • 7275652 - BOLT
