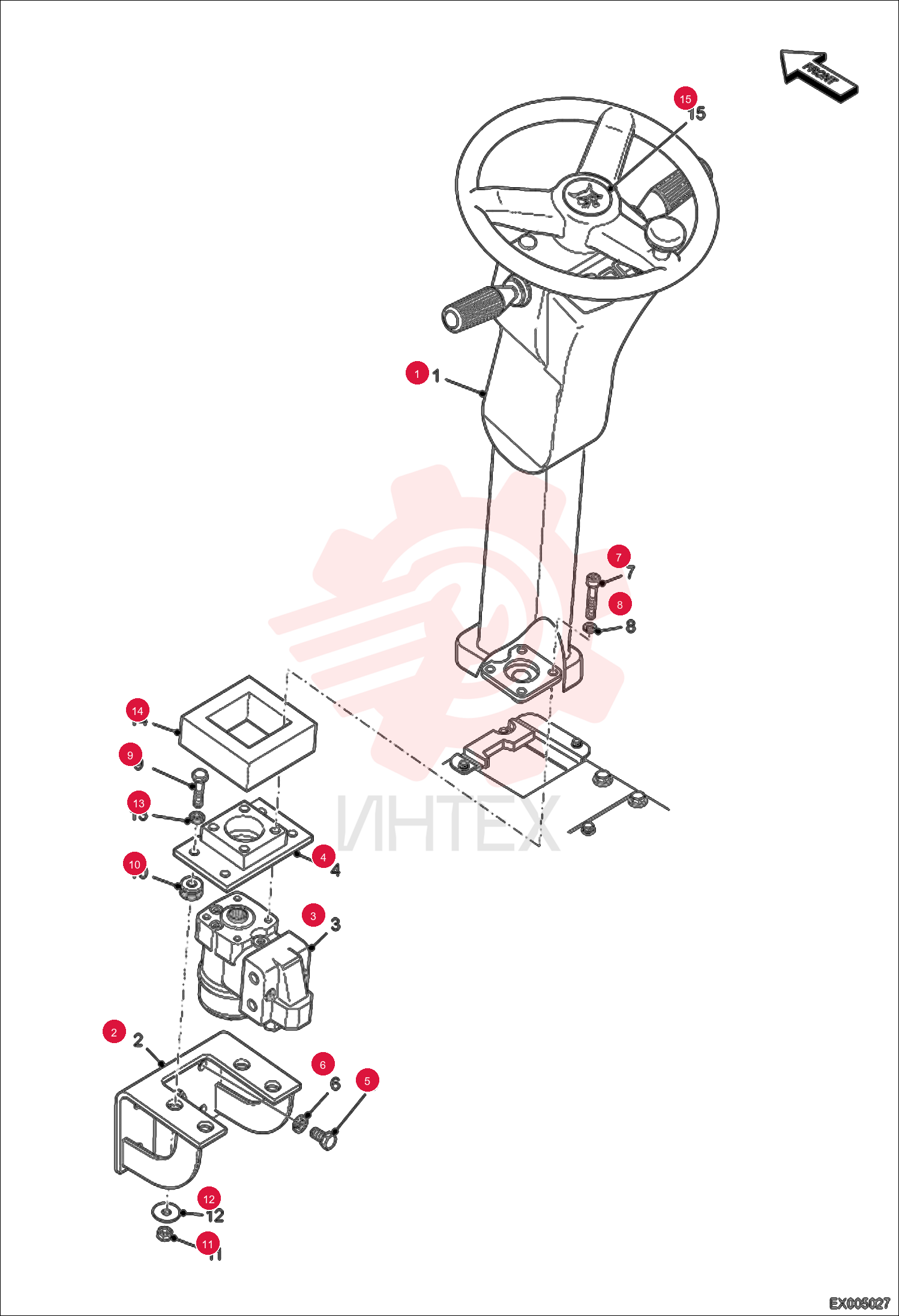

COLUMN ASSY, STEERING 7301880 (1)

COLUMN ASSY, STEERING 7301880 (1)

COLUMN ASSY, STEERING 7301880 (1)

1 7301880

  • 7301880 - COLUMN ASSY
  • STEERING

2 7015613

  • 7015613 - COLUMN ASSY
  • STEERING

3 7006392

  • 7006392 - BRACKET

4 7004864

  • 7004864 - HOUSING STEERING

5 7006393

  • 7006393 - BRACKET COLUMN

6 7007637

  • 7007637 - BOLT

7 7007836

  • 7007836 - WASHER SPRING M12

8 7007754

  • 7007754 - BOLT SOCKET

9 7007844

  • 7007844 - WASHER

10 7007671

  • 7007671 - BOLT

11 7004973

  • 7004973 - MOUNT FLEX

12 7007798

  • 7007798 - NUT M10X1.5

13 7004513

  • 7004513 - WASHER

14 7007835

  • 7007835 - WASHER SPRING

15 7008143

  • 7008143 - FOAM
  • SPONGE

16 7008280

  • 7008280 - PLATE
  • NAME
