Bobcat
/
E55W
/

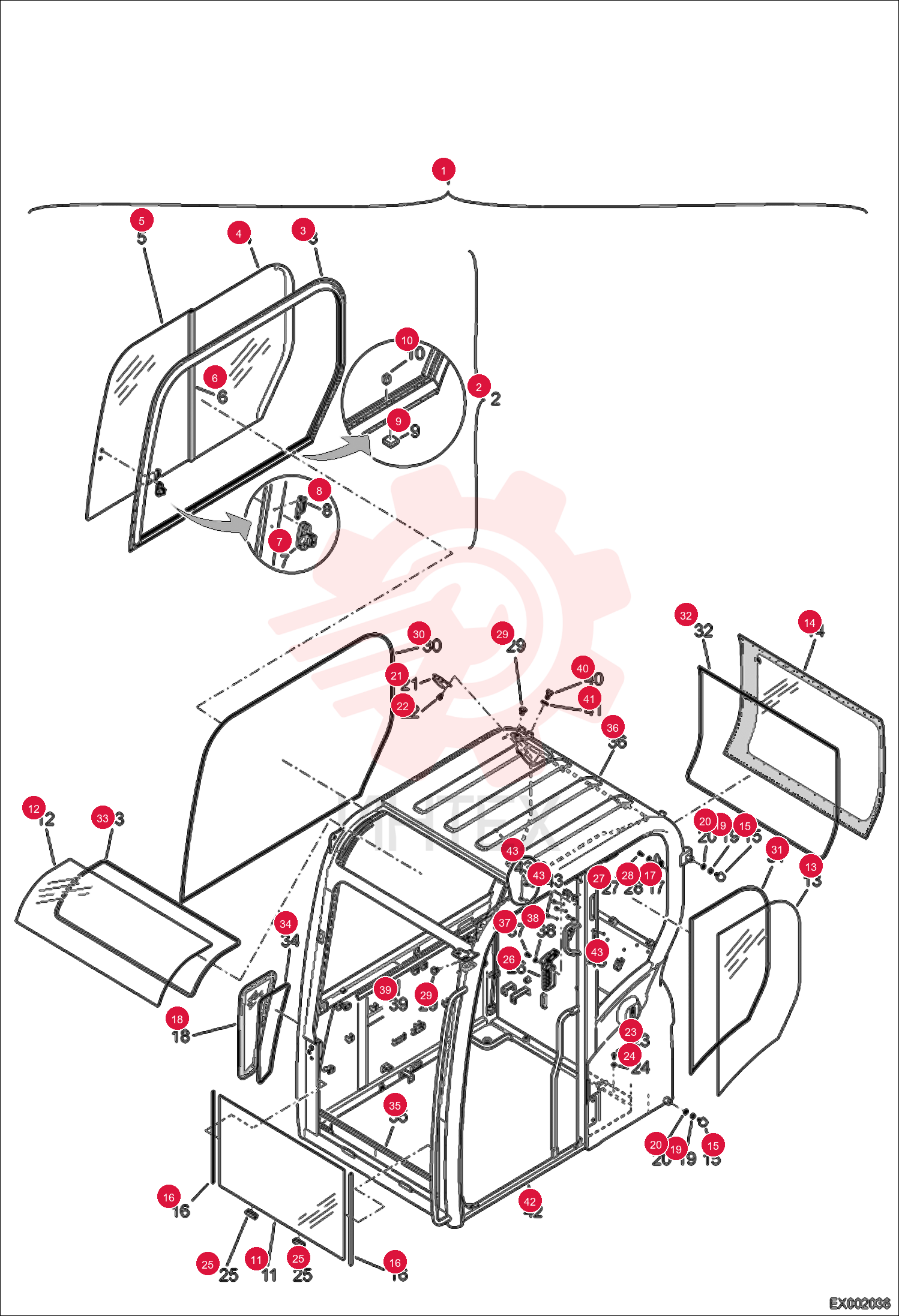

CAB ASSY 7306902

CAB ASSY 7306902

CAB ASSY 7306902

1 7306902

  • 7306902 - CAB ASSY
  • W/Ref. 2-43

2 7005759

  • 7005759 - FRAME SASH ASSY RH
  • W/Ref. 3-10

3 7006559

  • 7006559 - GLASS REAR

4 7006558

  • 7006558 - GLASS FRONT

5 7006655

  • 7006655 - BAR

6 7004584

  • 7004584 - LOCK

7 7003867

  • 7003867 - LOCK STOP

8 7005046

  • 7005046 - STOP
  • RUBBER

9 7004627

  • 7004627 - STOP GLASS

10 7005760

  • 7005760 - GLASS LOWER

11 7261974

  • 7261974 - GLASS
  • Was 7005761

12 7005762

  • 7005762 - GLASS REAR LH

13 7261976

  • 7261976 - GLASS
  • REAR
  • Was 7005763

14 7003928

  • 7003928 - STOP SLIDE DOOR

15 7005764

  • 7005764 - EDGE RUBBER

16 7005676

  • 7005676 - HOOK COAT

17 7005801

  • 7005801 - GLASS LOWER RH

18 7004563

  • 7004563 - NUT

19 7004512

  • 7004512 - WASHER

20 7006214

  • 7006214 - ANTENNA MODULE ASSY

21 7003873

  • 7003873 - BOLT

22 7007785

  • 7007785 - SCREW M6X1.0X12

23 7007814

  • 7007814 - WASHER

24 7004624

  • 7004624 - STOP
  • RUBBER

25 7004838

  • 7004838 - TOOL HAMMER

26 7004552

  • 7004552 - BOLT

27 7004516

  • 7004516 - WASHER

28 7004620

  • 7004620 - BUSHING
  • RUBBER

29 7005851

  • 7005851 - DAMPER

30 7005852

  • 7005852 - DAMPER

31 7005853

  • 7005853 - DAMPER

32 7005854

  • 7005854 - DAMPER

33 7005856

  • 7005856 - DAMPER

34 7005857

  • 7005857 - SEAL
  • EXTRUSION

35 7024761

  • 7024761 - HARNESS
  • CAB

36 7282142

  • 7282142 - HARNESS
  • CAB

37 7004543

  • 7004543 - BOLT

38 7007808

  • 7007808 - WASHER

39 7006246

  • 7006246 - FOAM POLYURETHANE

40 7004544

  • 7004544 - BOLT

41 7004509

  • 7004509 - WASHER

42 7024762

  • 7024762 - BOLT
