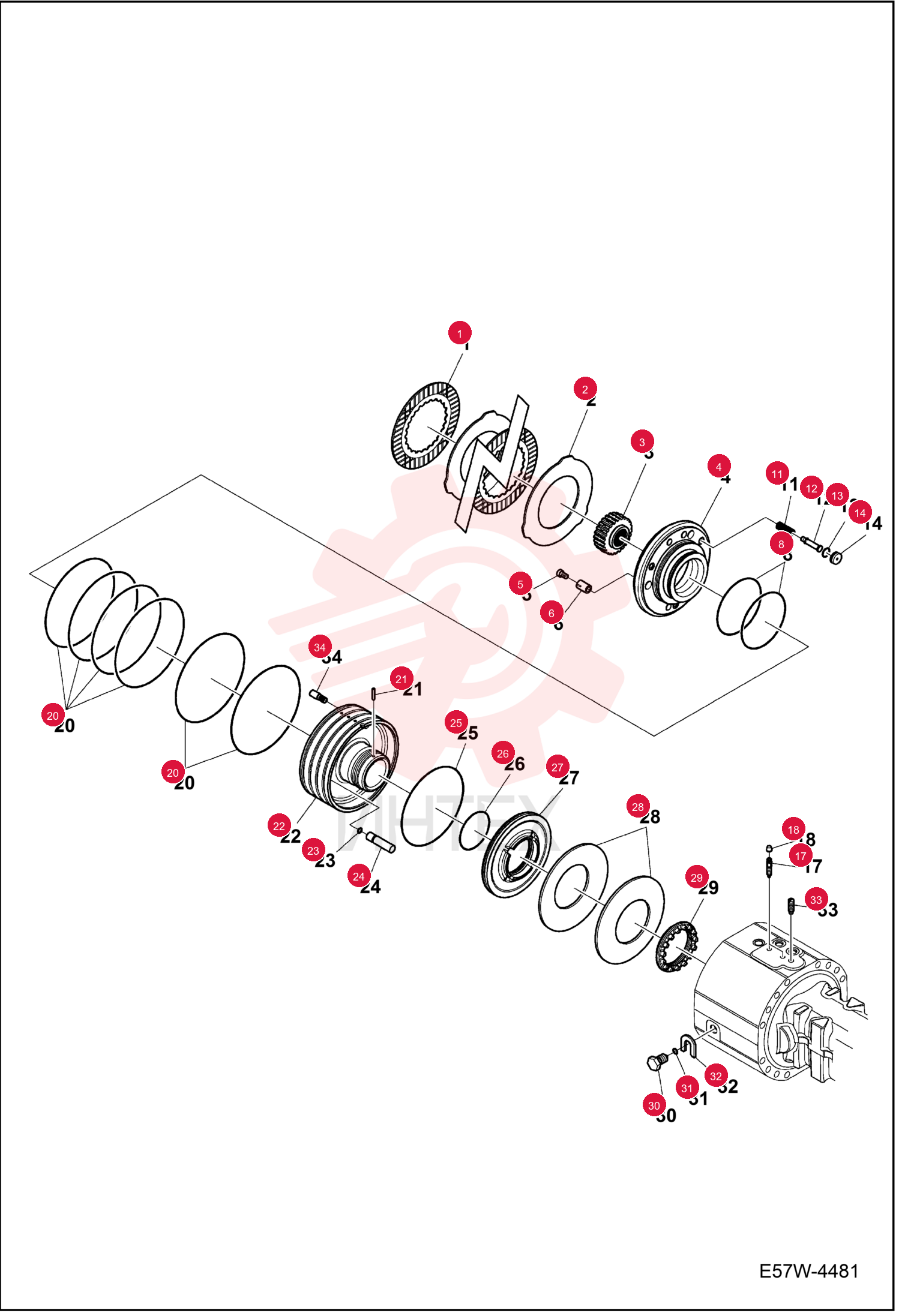

DISC, BRAKE 7296208 (2)

DISC, BRAKE 7296208 (2)

DISC, BRAKE 7296208 (2)

1 7296208

  • 7296208 - DISC
  • BRAKE

2 7327887

  • 7327887 - DISC BRAKE

3 7327885

  • 7327885 - BUSHING BRAKE

4 7327894

  • 7327894 - PISTON UNION

5 7296171

  • 7296171 - BOLT

6 7296304

  • 7296304 - SPRING

7 7327886

  • 7327886 - RING BACK UP

8 7296300

  • 7296300 - SPRING

9 7296172

  • 7296172 - BOLT

10 7296274

  • 7296274 - O-RING

11 7327895

  • 7327895 - PLUG STEEL

12 7004101

  • 7004101 - BOLT BLEEDING

13 7004282

  • 7004282 - PLUG

14 7327896

  • 7327896 - SEAL AXLE

15 6912698

  • 6912698 - PIN
  • Was 7283011

16 7327897

  • 7327897 - PISTON UNION

17 7296276

  • 7296276 - O-RING

18 7327898

  • 7327898 - PIN PIVOT

19 7296277

  • 7296277 - O-RING

20 7296278

  • 7296278 - O-RING

21 7327899

  • 7327899 - PIN PISTON

22 7283429

  • 7283429 - SPRING

23 7327900

  • 7327900 - NUT AXLE

24 7327901

  • 7327901 - BOLT HEX

25 7296224

  • 7296224 - O-RING

26 7327902

  • 7327902 - SPACER BRACKET

27 7296174

  • 7296174 - BOLT

28 7296168

  • 7296168 - BOLT
