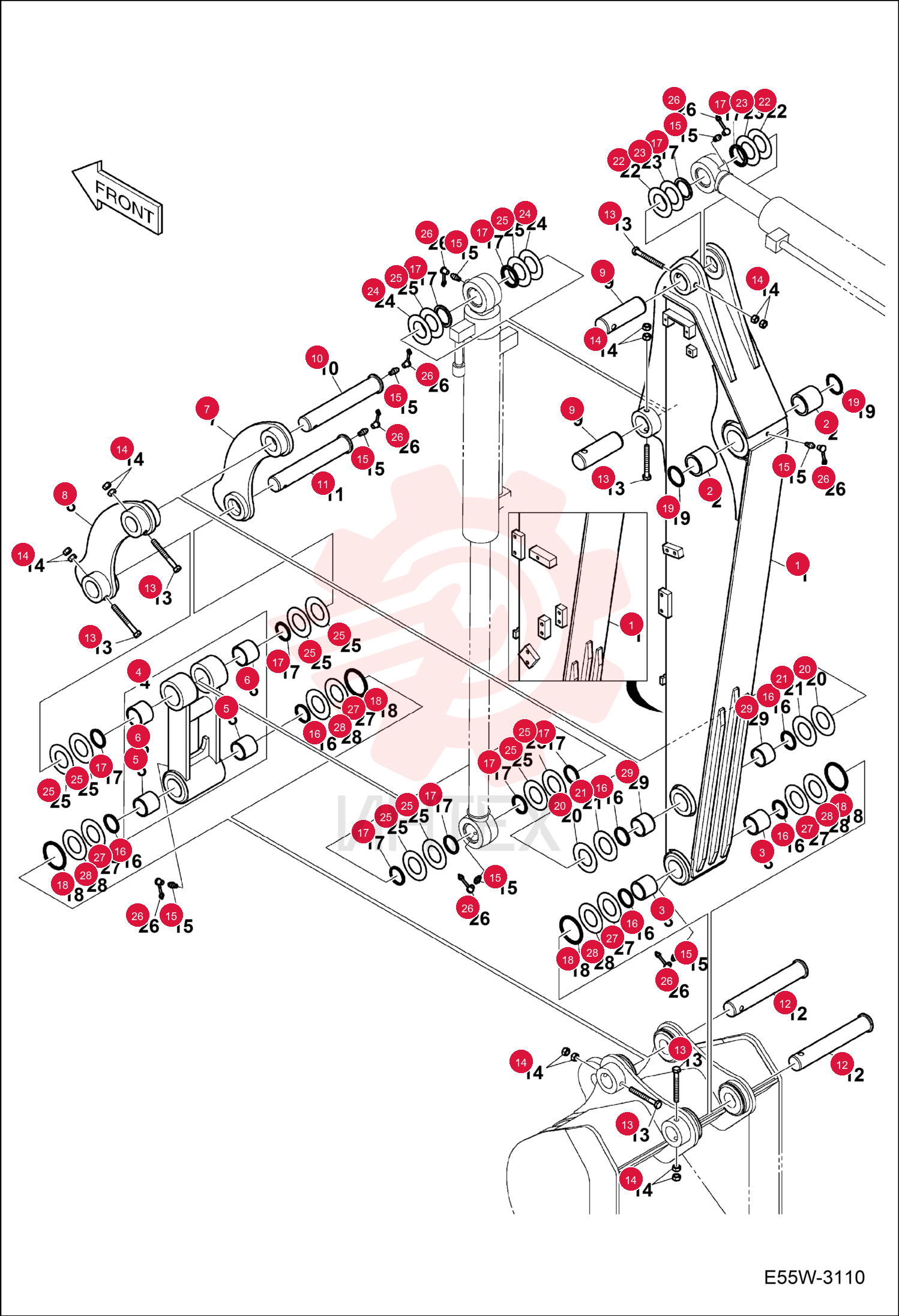

ARM MACH 1.9M

ARM MACH 1.9M

ARM MACH 1.9M

1 7006785

  • 7006785 - ARM MACH 1.9M
  • 1.9 m - W/Ref. 2-4

2 7281577

  • 7281577 - ARM

3 7029695

  • 7029695 - BUSHING
  • Was 7005747

4 7281141

  • 7281141 - BUSHING

5 7028768

  • 7028768 - BUSHING
  • Was 7005748

6 7029893

  • 7029893 - LINK ASSEMBLY
  • W/Ref. 6-8 - Was 7005723

7 7028768

  • 7028768 - BUSHING
  • Was 7005748

8 7029696

  • 7029696 - BUSHING
  • Was 7005749

9 7003917

  • 7003917 - LINK GUIDE RH

10 7003918

  • 7003918 - LINK GUIDE LH

11 7022891

  • 7022891 - PIN PIVOT

12 7022886

  • 7022886 - PIN

13 7274073

  • 7274073 - PIN
  • BUCKET
  • Was 7022887

14 7018644

  • 7018644 - PIN
  • ARM/LINK TO BUCKET
  • Was 7004578

15 7007692

  • 7007692 - BOLT

16 7007799

  • 7007799 - NUT

17 6694227

  • 6694227 - FITTING
  • GREASE
  • Was 7010247

18 7029360

  • 7029360 - SEAL
  • DUST
  • Was 7004637

19 7029361

  • 7029361 - SEAL
  • DUST
  • Was 7004638

20 7003939

  • 7003939 - O-RING

21 7029978

  • 7029978 - SEAL
  • DUST
  • Was 7004636

22 7005604

  • 7005604 - SHIM 1.0T
  • 1
  • 0 mm

23 7005605

  • 7005605 - SHIM 1.6T
  • 1
  • 6 mm

24 7005606

  • 7005606 - SHIM 1.0T
  • 1
  • 0 mm

25 7005607

  • 7005607 - SHIM 1.6T
  • 1
  • 6 mm

26 7005610

  • 7005610 - SHIM 1.0T
  • 1
  • 0 mm

27 7005611

  • 7005611 - SHIM 1.6T
  • 1
  • 6 mm

28 7003923

  • 7003923 - CAP GREASE NIPPLE

29 7004482

  • 7004482 - SHIM

30 7004483

  • 7004483 - SHIM

31 7281142

  • 7281142 - BUSHING
