SENSOR FOOT 7355510

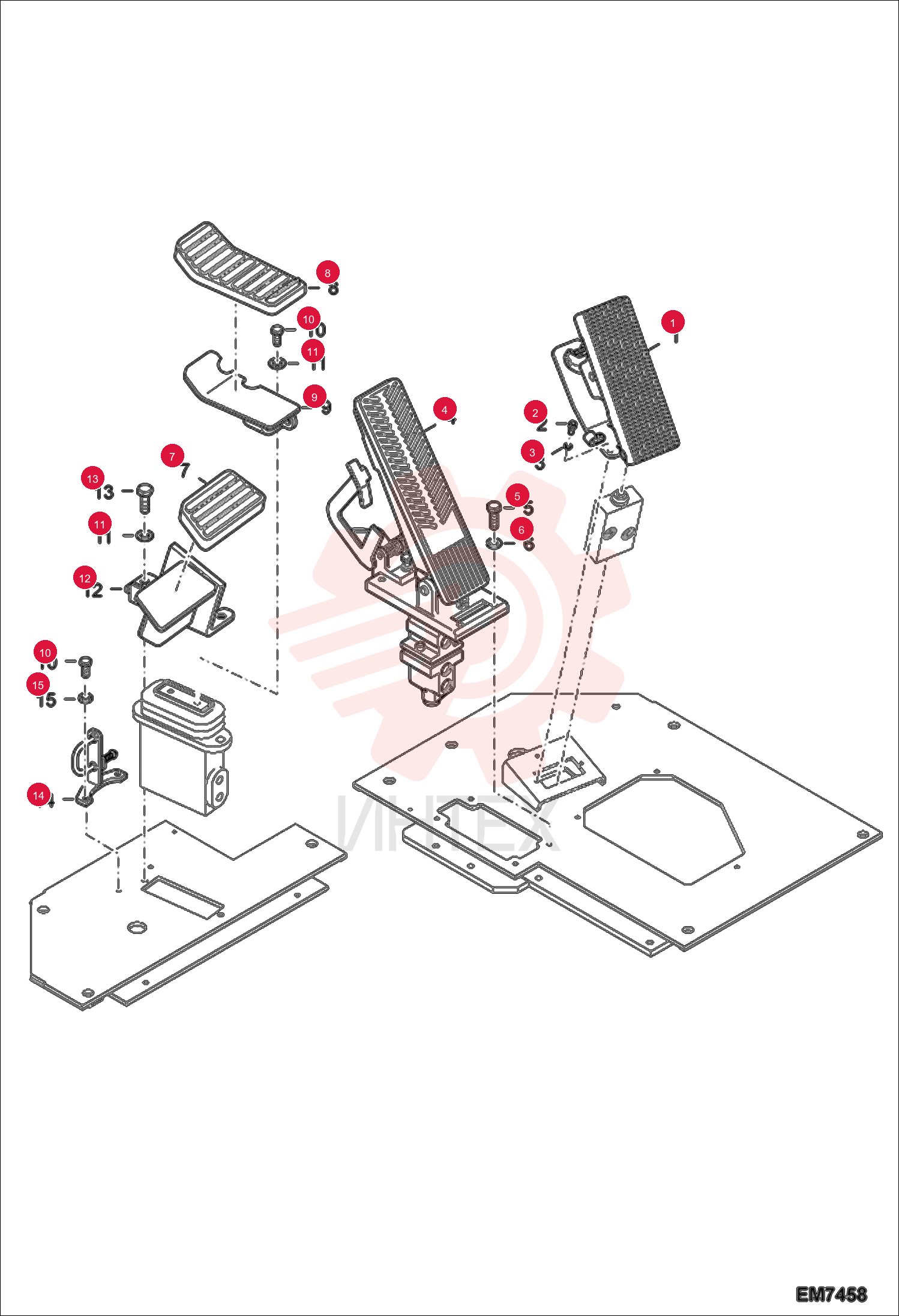

SENSOR FOOT 7355510

SENSOR FOOT 7355510

1 7355510

  • 7355510 - SENSOR FOOT

2 7005650

  • 7005650 - PEDAL ACCELERATOR

3 7007720

  • 7007720 - BOLT

4 7008301

  • 7008301 - WASHER

5 7005833

  • 7005833 - VALVE BRAKE PEDAL

6 7007655

  • 7007655 - BOLT

7 7276756

  • 7276756 - WASHER
  • Was 7007834

8 7005644

  • 7005644 - PAD RUBBER PEDAL

9 7005678

  • 7005678 - PAD RUBBER PEDAL

10 7006125

  • 7006125 - BRACKET PEDAL

11 7004546

  • 7004546 - BOLT

12 7004512

  • 7004512 - WASHER

13 7006433

  • 7006433 - PLATE FOOT REST LH

14 7004530

  • 7004530 - BOLT M10X1.5X30

15 7005632

  • 7005632 - PLATE

16 7004515

  • 7004515 - WASHER
