Bobcat
/
E55W
/

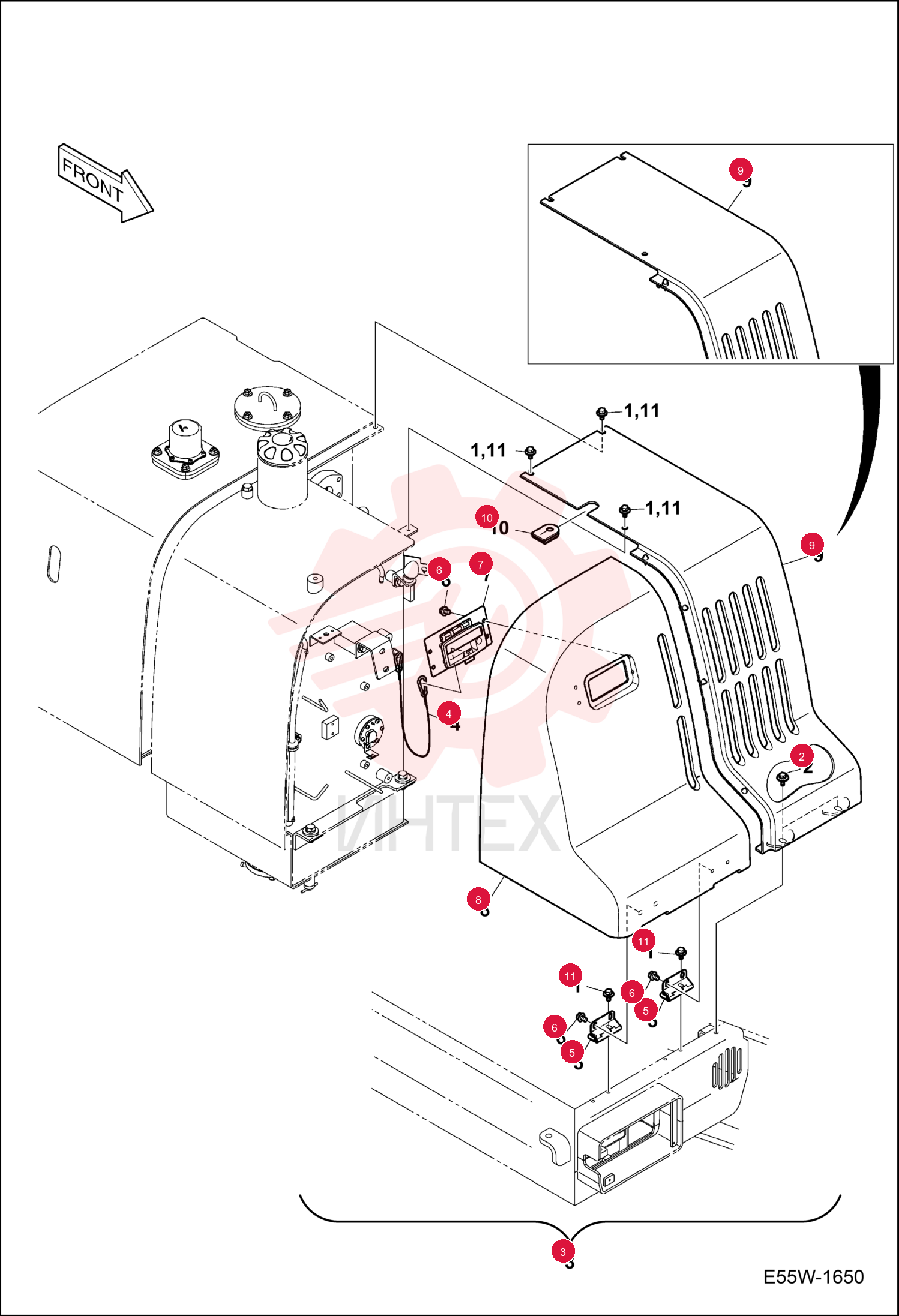

BOLT M8X1.25X20

BOLT M8X1.25X20

BOLT M8X1.25X20

1 7012260

  • 7012260 - BOLT M8X1.25X20

2 7012260

  • 7012260 - BOLT M8X1.25X20

3 7005128

  • 7005128 - BOLT SET

4 7005132

  • 7005132 - BOLT SET

5 7012261

  • 7012261 - BOLT
  • SET

6 7344015

  • 7344015 - COVER BATTERY
  • W/Ref. 4-8

7 7344014

  • 7344014 - WIRE

8 7005799

  • 7005799 - HINGE

9 7005629

  • 7005629 - BOLT

10 7024032

  • 7024032 - CATCH

11 7280918

  • 7280918 - COVER

12 7280920

  • 7280920 - GROMMET

13 7005128

  • 7005128 - BOLT SET
