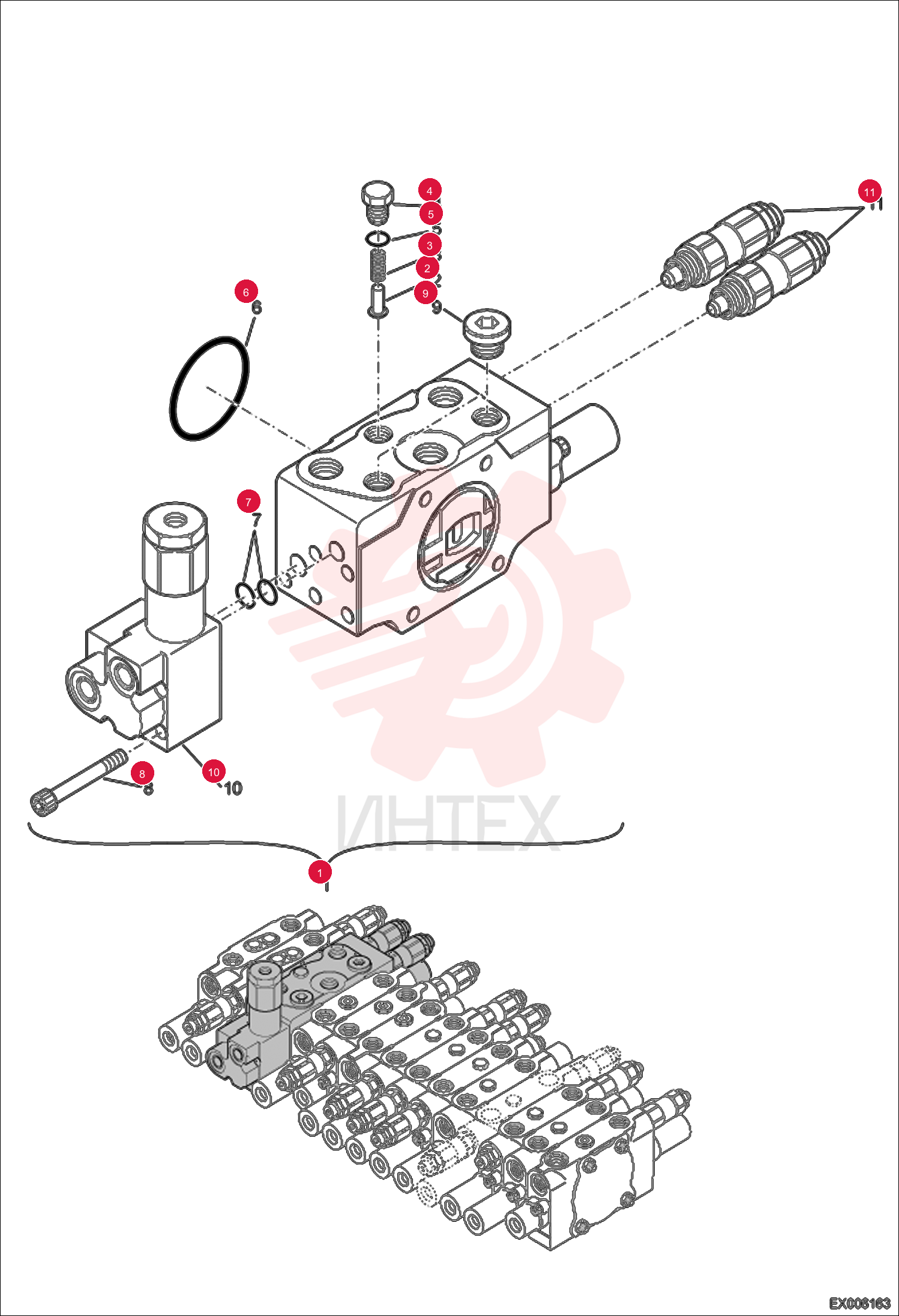

BLOCK ASSY-BOOM1

BLOCK ASSY-BOOM1

BLOCK ASSY-BOOM1

1 7007008

  • 7007008 - BLOCK ASSY-BOOM1
  • boom 1 - W/Ref. 2-10

2 7006935

  • 7006935 - ORIFICE POPPET

3 7006936

  • 7006936 - SPRING

4 7006942

  • 7006942 - PLUG

5 7006934

  • 7006934 - ORING

6 7007937

  • 7007937 - O-RING

7 7006937

  • 7006937 - ORING

8 7007730

  • 7007730 - BOLT SOCKET

9 7003956

  • 7003956 - PLUG

10 7006938

  • 7006938 - VALVE ANTI-DRIFT

11 7006926

  • 7006926 - VALVE RELIEF ASSY
