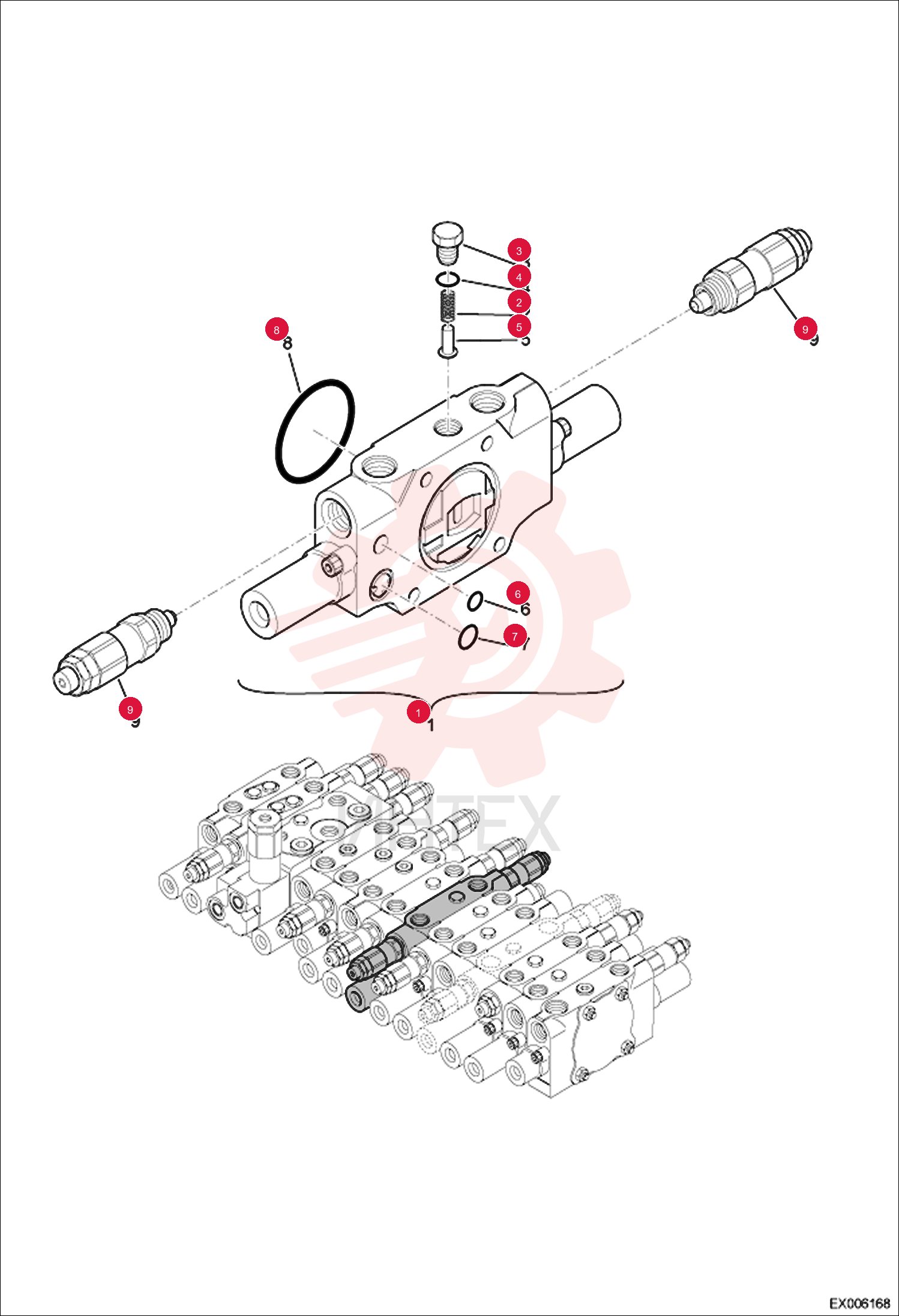

BLOCK ASSY-ARM1

BLOCK ASSY-ARM1

BLOCK ASSY-ARM1

1 7006929

  • 7006929 - BLOCK ASSY-ARM1
  • arm 1 - W/Ref. 2-8

2 7006936

  • 7006936 - SPRING

3 7006942

  • 7006942 - PLUG

4 7006934

  • 7006934 - ORING

5 7006935

  • 7006935 - ORIFICE POPPET

6 7007905

  • 7007905 - O-RING

7 7007913

  • 7007913 - O-RING

8 7007937

  • 7007937 - O-RING

9 7006926

  • 7006926 - VALVE RELIEF ASSY
