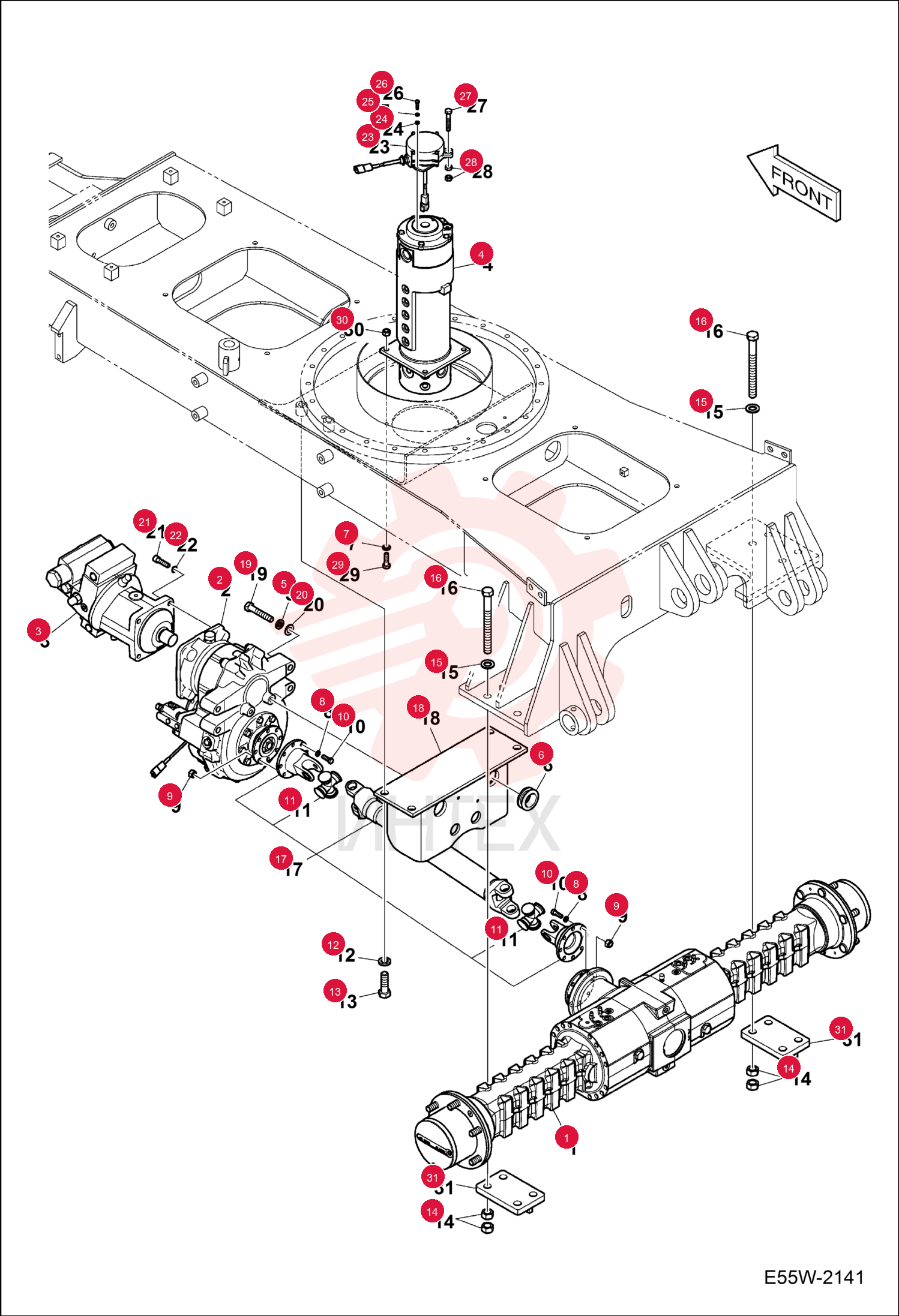

AXLE REAR 7313639

AXLE REAR 7313639

AXLE REAR 7313639

1 7313639

  • 7313639 - AXLE REAR

2 7281099

  • 7281099 - AXLE
  • REAR

3 7347737

  • 7347737 - TRANSMISSION

4 7005736

  • 7005736 - TRANSMISSION

5 7023671

  • 7023671 - MOTOR
  • DRIVE

6 7023672

  • 7023672 - JOINT
  • SWIVEL

7 7030045

  • 7030045 - WASHER
  • SPRING

8 7005593

  • 7005593 - BUSHING

9 7276070

  • 7276070 - WASHER

10 7007836

  • 7007836 - WASHER SPRING M12

11 7007844

  • 7007844 - WASHER

12 7004560

  • 7004560 - NUT

13 7005649

  • 7005649 - BOLT

14 7007251

  • 7007251 - YOKE UNIVERSAL JOINT

15 7004524

  • 7004524 - WASHER HARDEN

16 7007840

  • 7007840 - WASHER

17 7007715

  • 7007715 - BOLT

18 7008299

  • 7008299 - NUT
  • M20X2.5

19 7004524

  • 7004524 - WASHER HARDEN

20 7003869

  • 7003869 - BOLT

21 7005832

  • 7005832 - SHAFT PROPELLER REAR

22 7347740

  • 7347740 - BRACKET

23 7007706

  • 7007706 - BOLT

24 7004507

  • 7004507 - WASHER PLAIN

25 7007763

  • 7007763 - BOLT

26 7007845

  • 7007845 - WASHER SPRING

27 7005741

  • 7005741 - RING SLIP

28 7007810

  • 7007810 - WASHER

29 7007827

  • 7007827 - WASHER SPRING

30 7007601

  • 7007601 - BOLT

31 7007755

  • 7007755 - BOLT SOCKET

32 7007798

  • 7007798 - NUT M10X1.5

33 7007682

  • 7007682 - BOLT

34 7004567

  • 7004567 - NUT LOCK

35 7005038

  • 7005038 - PLATE
