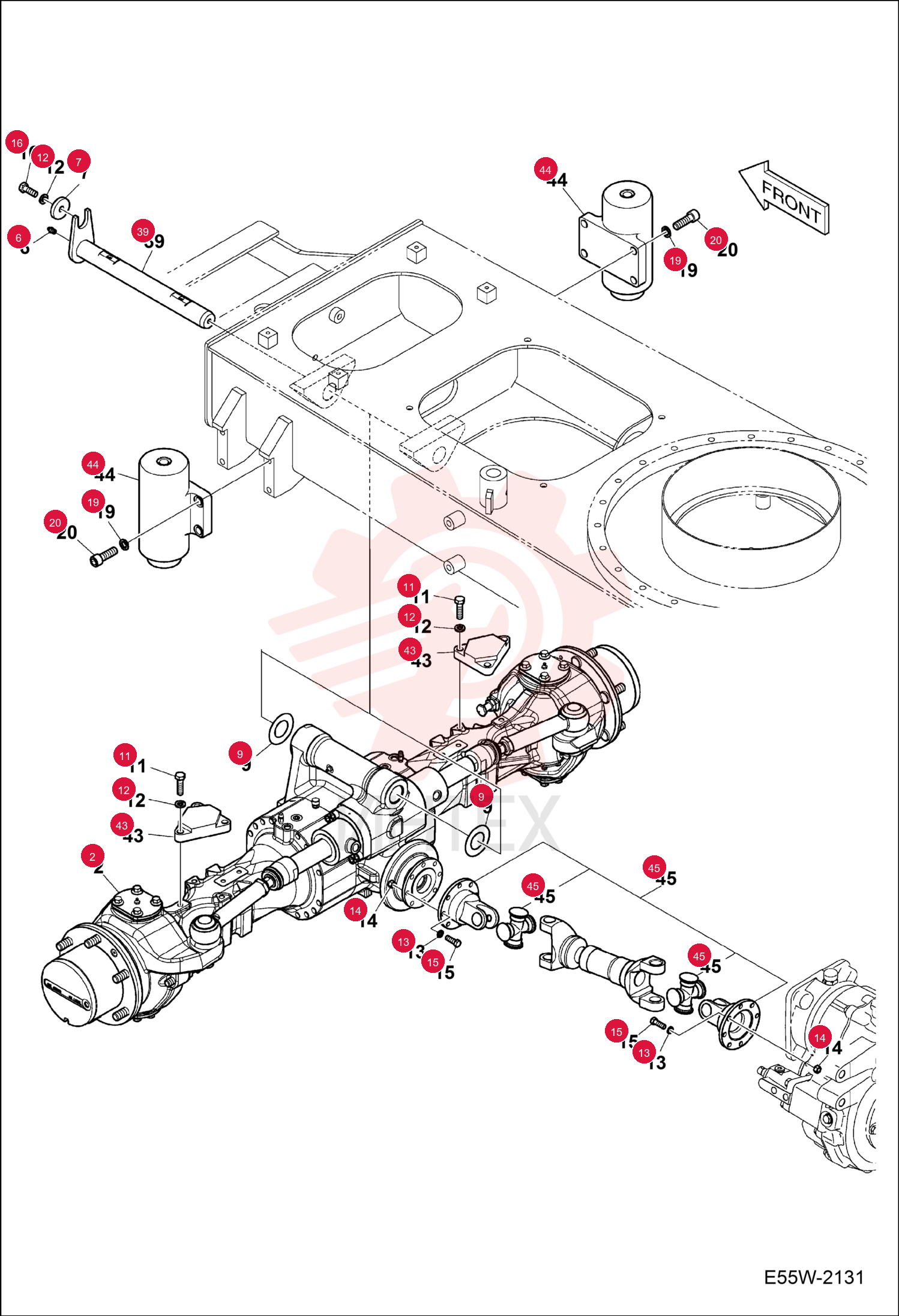

AXLE FRONT 7313640

AXLE FRONT 7313640

AXLE FRONT 7313640

1 7313640

  • 7313640 - AXLE FRONT

2 7283627

  • 7283627 - AXLE
  • FRONT

3 7007894

  • 7007894 - FITTING GREASE

4 7005142

  • 7005142 - WASHER

5 7004486

  • 7004486 - SHIM

6 7007682

  • 7007682 - BOLT

7 7007683

  • 7007683 - BOLT

8 7276070

  • 7276070 - WASHER

9 7007836

  • 7007836 - WASHER SPRING M12

10 7007844

  • 7007844 - WASHER

11 7004560

  • 7004560 - NUT

12 7005649

  • 7005649 - BOLT

13 7007641

  • 7007641 - BOLT

14 7007847

  • 7007847 - WASHER

15 7007774

  • 7007774 - BOLT

16 7022883

  • 7022883 - PIN

17 7347713

  • 7347713 - PLATE

18 7345579

  • 7345579 - PLATE

19 7283628

  • 7283628 - PLATE

20 7330070

  • 7330070 - CYLINDER STABILIZER

21 7005688

  • 7005688 - CYLINDER STABILIZER

22 7007251

  • 7007251 - YOKE UNIVERSAL JOINT

23 7005831

  • 7005831 - SHAFT PROPELLER FRONT
