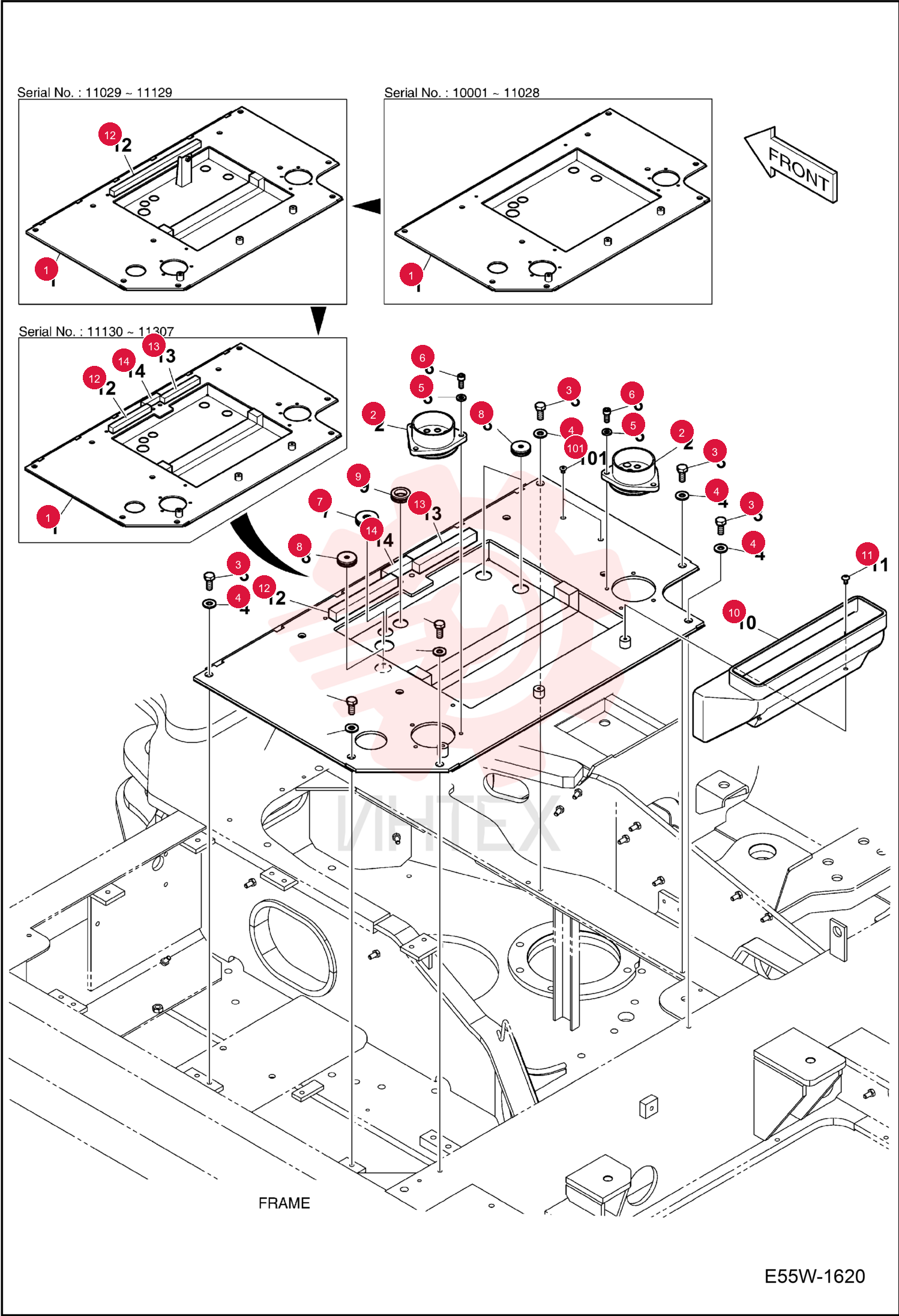

PLATE FLOOR REAR 7327965

PLATE FLOOR REAR 7327965

PLATE FLOOR REAR 7327965

1 7327965

  • 7327965 - PLATE FLOOR REAR

2 7005841

  • 7005841 - BUSHING
  • RUBBER

3 7004534

  • 7004534 - BOLT

4 7004509

  • 7004509 - WASHER

5 7004515

  • 7004515 - WASHER

6 7007735

  • 7007735 - BOLT

7 7005962

  • 7005962 - BUSHING
  • RUBBER

8 7029059

  • 7029059 - GROMMET

9 7005963

  • 7005963 - BUSHING
  • RUBBER

10 7029060

  • 7029060 - GROMMET

11 7029061

  • 7029061 - GROMMET

12 7005961

  • 7005961 - BUSHING
  • RUBBER

13 7005880

  • 7005880 - DUCT
  • REAR

14 7004547

  • 7004547 - BOLT

15 7327959

  • 7327959 - FOAM POLYURETHANE

16 7327960

  • 7327960 - FOAM POLYURETHANE

17 7327961

  • 7327961 - FOAM POLYURETHANE

18 7327962

  • 7327962 - FOAM POLYURETHANE

19 7276757

  • 7276757 - CAP
  • DUST
