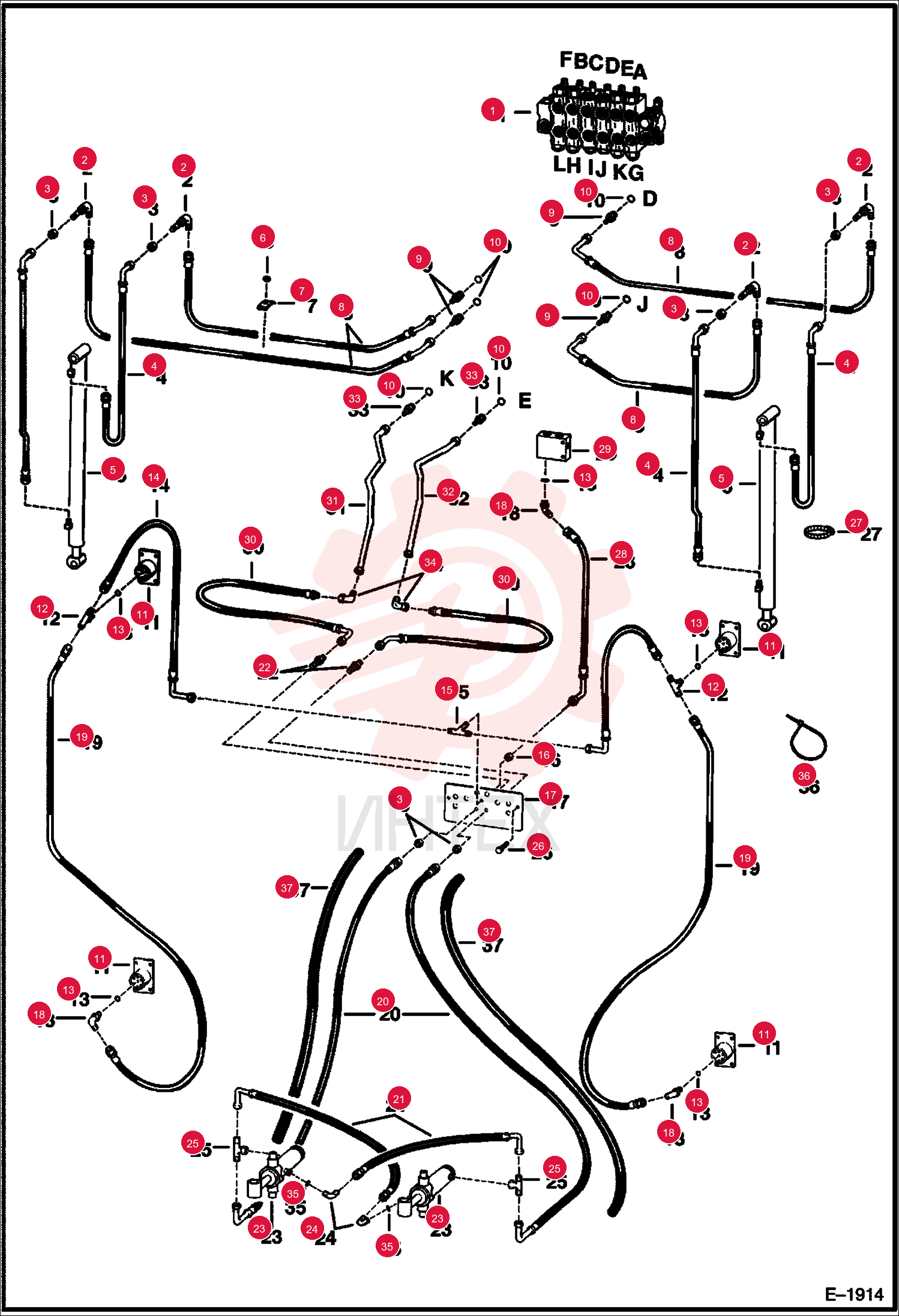

ELBOW 88F5

ELBOW 88F5

ELBOW 88F5

1 88F5

  • 88F5 - ELBOW

2 86F5

  • 86F5 - NUT

3 6532126

  • 6532126 - HOSE

4 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

5 6502426

  • 6502426 - CLAMP

6 6531888

  • 6531888 - HOSE

7 731795

  • 731795 - CONNECTR
  • W/Ref. 10

8 79K10

  • 79K10 - O RING 10

9 19K3

  • 19K3 - FITTING
  • W/Ref. 13

10 79K4

  • 79K4 - O RING 10

11 6532219

  • 6532219 - HOSE

12 90F3

  • 90F3 - TEE

13 86F3

  • 86F3 - NUT 10

14 6531763

  • 6531763 - PLATE

15 17K3

  • 17K3 - ELBOW
  • W/Ref. 13

16 6530858

  • 6530858 - HOSE

17 6531893

  • 6531893 - HOSE

18 6533363

  • 6533363 - HOSE

19 45K5

  • 45K5 - FITTING

20 17K5

  • 17K5 - ELBOW
  • W/Ref. 35

21 14K5

  • 14K5 - TEE

22 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW
  • Was 17KN00005B

23 99K6

  • 99K6 - O-RING
  • boss end - Was 98K6

24 96K6

  • 96K6 - O-RING
  • Fare End

25 17C616

  • 17C616 - BOLT 5

26 42H40

  • 42H40 - HOSECLAM5

27 6532218

  • 6532218 - HOSE

28 6531749

  • 6531749 - BLOCK
  • PORT

29 6531891

  • 6531891 - HOSE

30 6531374

  • 6531374 - TUBE

31 6531373

  • 6531373 - TUBE

32 731794

  • 731794 - CONNECTR
  • W/Ref. 10

33 11K6

  • 11K6 - UNION

34 79K6

  • 79K6 - O RING 10

35 6610510

  • 6610510 - STRAP
  • TIE 10
  • Was 1715312B

36 6649389

  • 6649389 - HOSE
  • CVR BULK/FT
  • bulk - sold per foot
