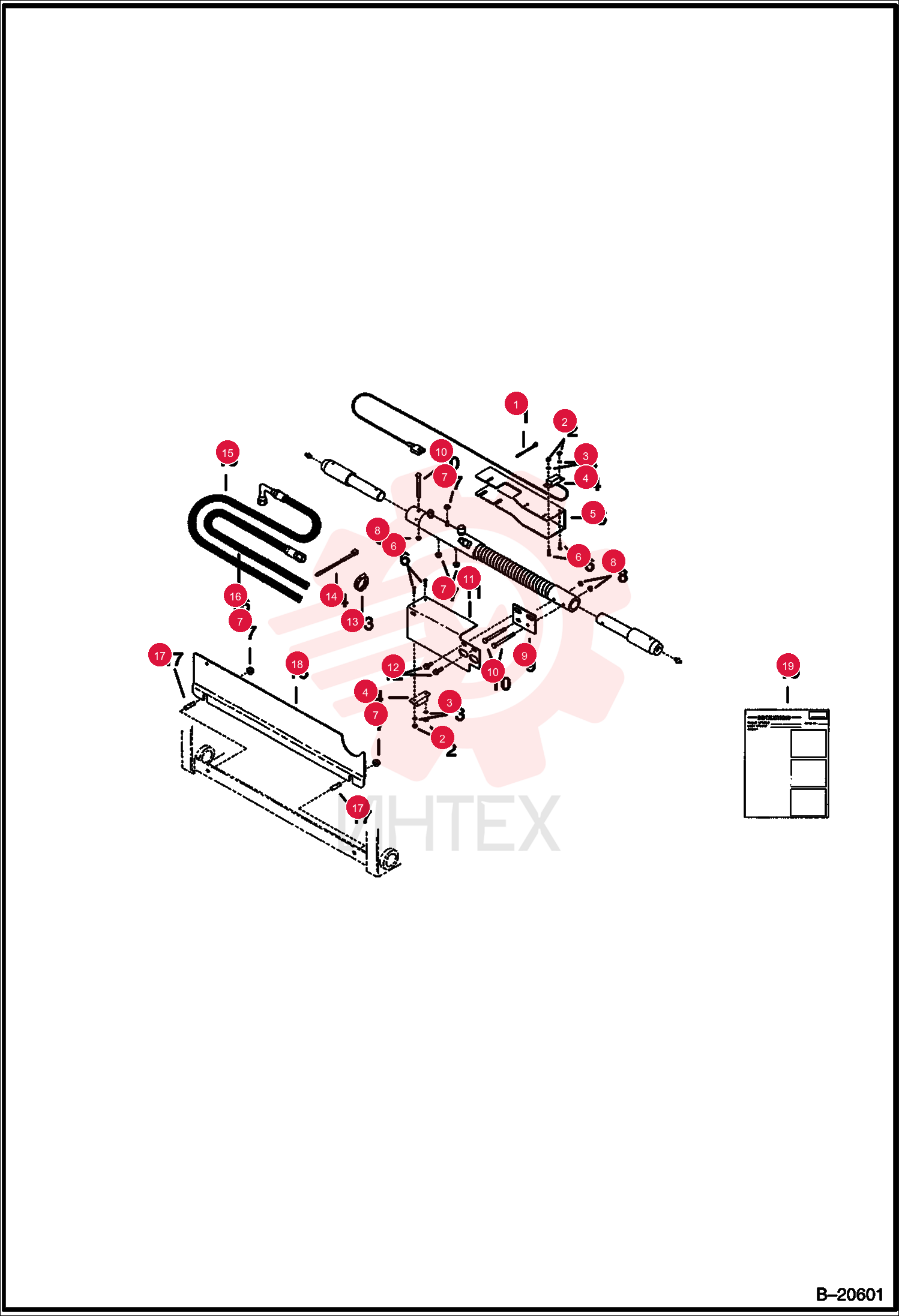

STRAP, TIE 10

STRAP, TIE 10

STRAP, TIE 10

1 6610510

  • 6610510 - STRAP
  • TIE 10

2 14D6

  • 14D6 - NUT

3 12E6

  • 12E6 - WASHER

4 6657182

  • 6657182 - SENSOR
  • magnetic

5 6535787

  • 6535787 - MOUNT

6 86G608

  • 86G608 - BOLT

7 6518382

  • 6518382 - NUT

8 83D6

  • 83D6 - LKNUT HEX FLG GR8

9 6536926

  • 6536926 - PLATE

10 17C644

  • 17C644 - BOLT

11 6535785

  • 6535785 - MOUNT

12 84G3710

  • 84G3710 - SCREW

13 42H16

  • 42H16 - CLAMP
  • HOSE 5

14 6624289

  • 6624289 - STRAP
  • TIE

15 6538357

  • 6538357 - HOSE

16 6538354

  • 6538354 - HOSE

17 730233

  • 730233 - STUD

18 6536924

  • 6536924 - COVER

19 6720611

  • 6720611 - INSTRUCTIONS
