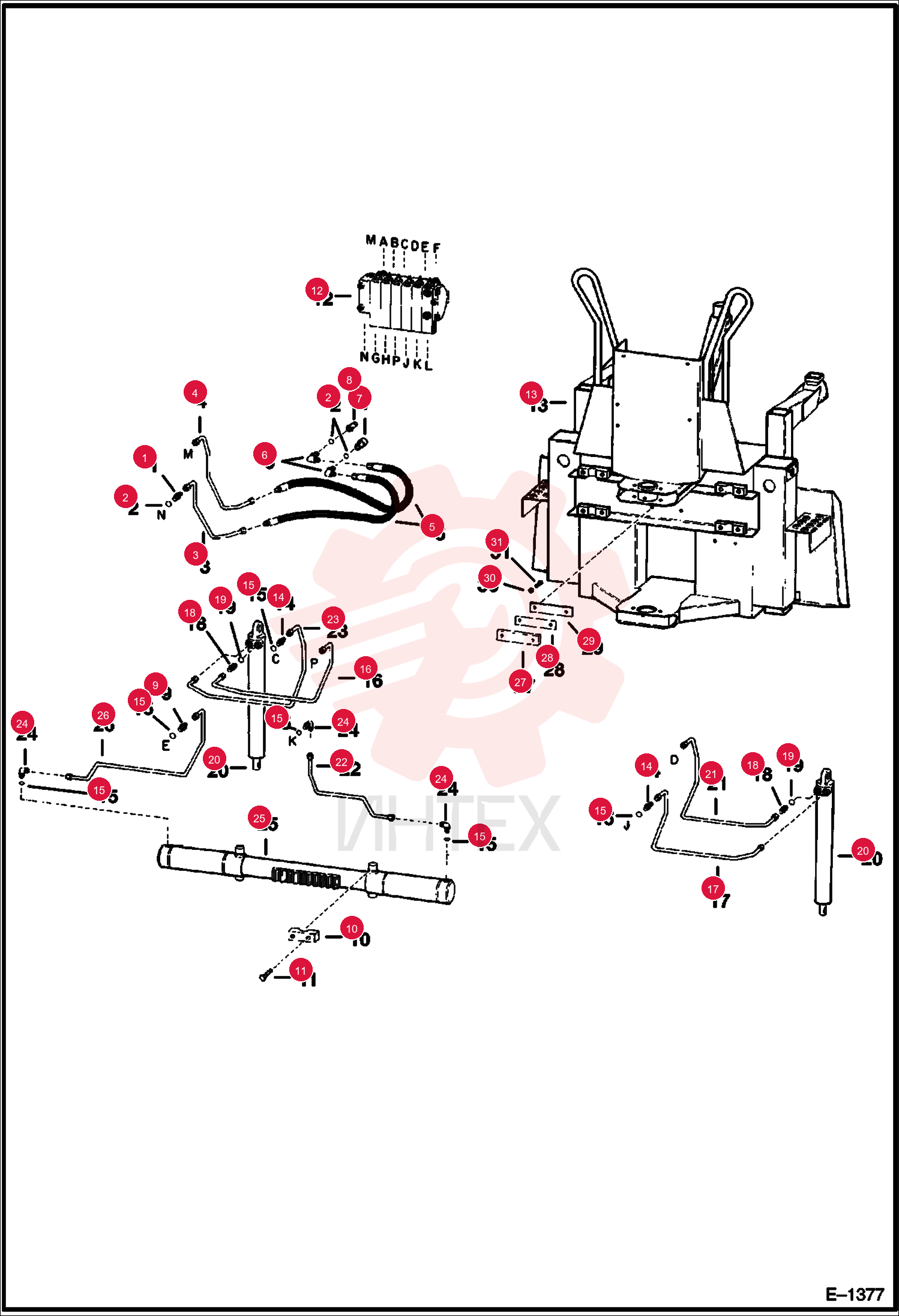

FITTING 15K7 (2)

FITTING 15K7 (2)

FITTING 15K7 (2)

1 15K7

  • 15K7 - FITTING
  • W/Ref. 2

2 79K12

  • 79K12 - O RING 10
  • Use with flush face couplers

3 79K10

  • 79K10 - O RING 10
  • Use with poppet couplers

4 6561695

  • 6561695 - TUBE

5 6561694

  • 6561694 - TUBE

6 6560786

  • 6560786 - ASSY
  • HOSE

7 17KB1012

  • 17KB1012 - FITTING
  • HYD ELBOW
  • Use with flush face couplers - Was 1302104B

8 17K7

  • 17K7 - ELBOW
  • Use with poppet couplers

9 48K16

  • 48K16 - O RING 10
  • for poppet coupler

10 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

11 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

12 6598758

  • 6598758 - COUPLER FF FEMALE
  • straight

13 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

14 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

15 6598757

  • 6598757 - COUPLER
  • POPPET MALE
  • straight

16 15K6

  • 15K6 - ADAPTER
  • W/Ref. 15

17 6560428

  • 6560428 - RETAINER

18 17C840

  • 17C840 - BOLT

19 743108

  • 743108 - FITTING
  • W/Ref. 15

20 79K8

  • 79K8 - O RING 10

21 6562054

  • 6562054 - TUBE

22 6562055

  • 6562055 - TUBE

23 15K5

  • 15K5 - FITTING
  • W/Ref. 19

24 79K6

  • 79K6 - O RING 10

25 6562053

  • 6562053 - TUBE

26 6562057

  • 6562057 - TUBE

27 6562052

  • 6562052 - TUBE

28 17K6

  • 17K6 - ELBOW
  • W/Ref. 15

29 6562056

  • 6562056 - TUBE

30 6562540

  • 6562540 - BAR-SPACR
  • spacer

31 6562524

  • 6562524 - SHIM

32 25E15

  • 25E15 - WASHER FLAT PLAIN

33 17C516

  • 17C516 - BOLT
