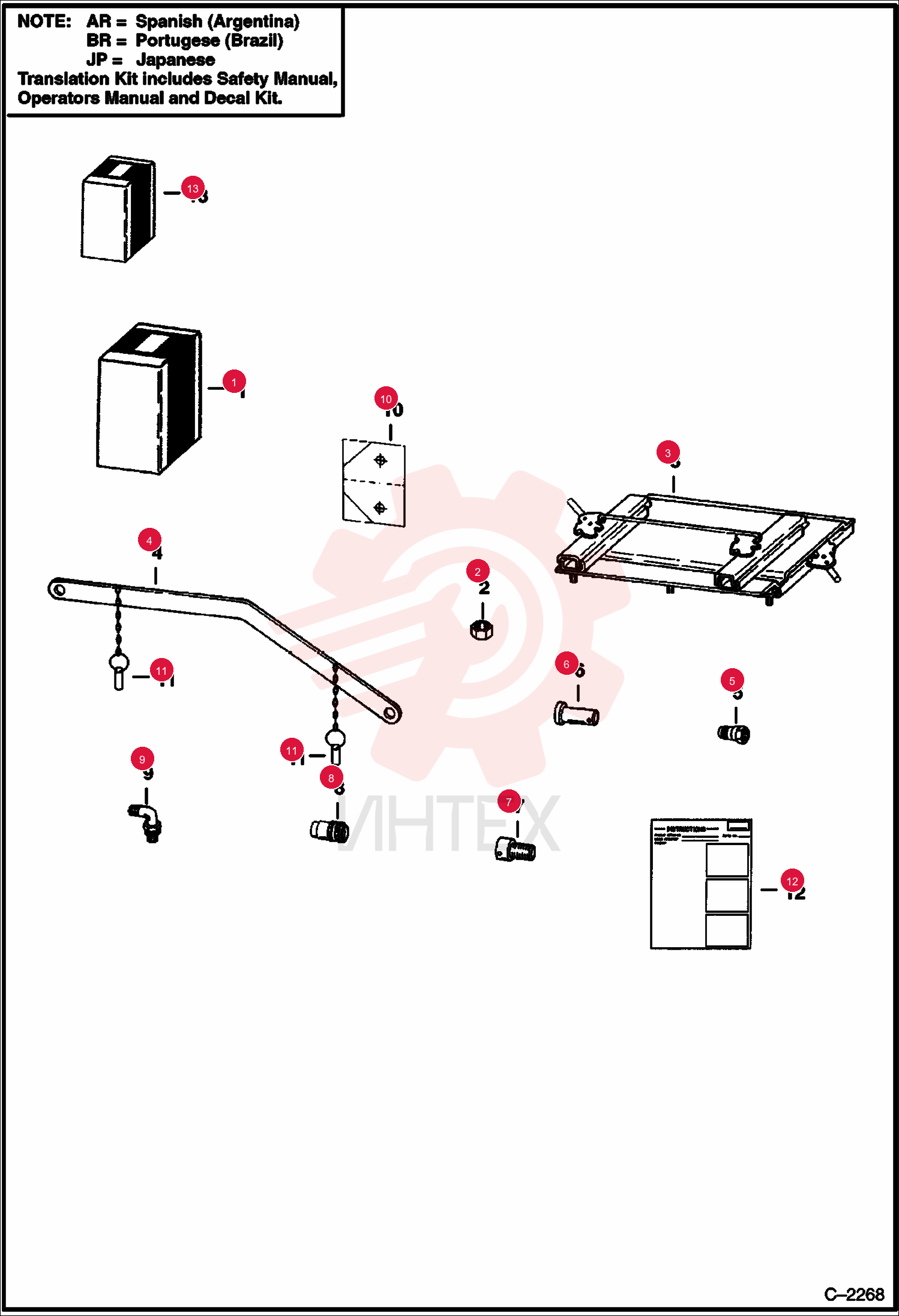

LCKNUT 61D16 (1)

LCKNUT 61D16 (1)

LCKNUT 61D16 (1)

1 61D16

  • 61D16 - LCKNUT

2 6557963

  • 6557963 - ADJUSTER ASSEMBLY

3 6560511

  • 6560511 - BRACE ASY
  • lockout - tilt

4 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

5 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

6 6513634

  • 6513634 - COUPLER
  • male - poppet

7 6557920

  • 6557920 - PIN

8 6557887

  • 6557887 - PIN
  • threaded

9 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

10 58K211

  • 58K211 - O RING 10
  • Use with poppet coupler

11 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

12 6512159

  • 6512159 - COUPLER
  • female - poppet

13 6589193

  • 6589193 - ELBOW
  • Use with flush face couplers

14 1300059

  • 1300059 - ELBOW
  • Use with poppet couplers

15 6558092

  • 6558092 - TEMPLATE

16 6649496

  • 6649496 - CLICK PIN
  • Was 6513692

17 6566553

  • 6566553 - INSTRUCTIONS

18 6718710BR

  • 6718710BR - KIT
  • TRANSLATION
  • translation - SEE NOTE

19 6718710AR

  • 6718710AR - KIT
  • TRANSLATION
  • translation - SEE NOTE
